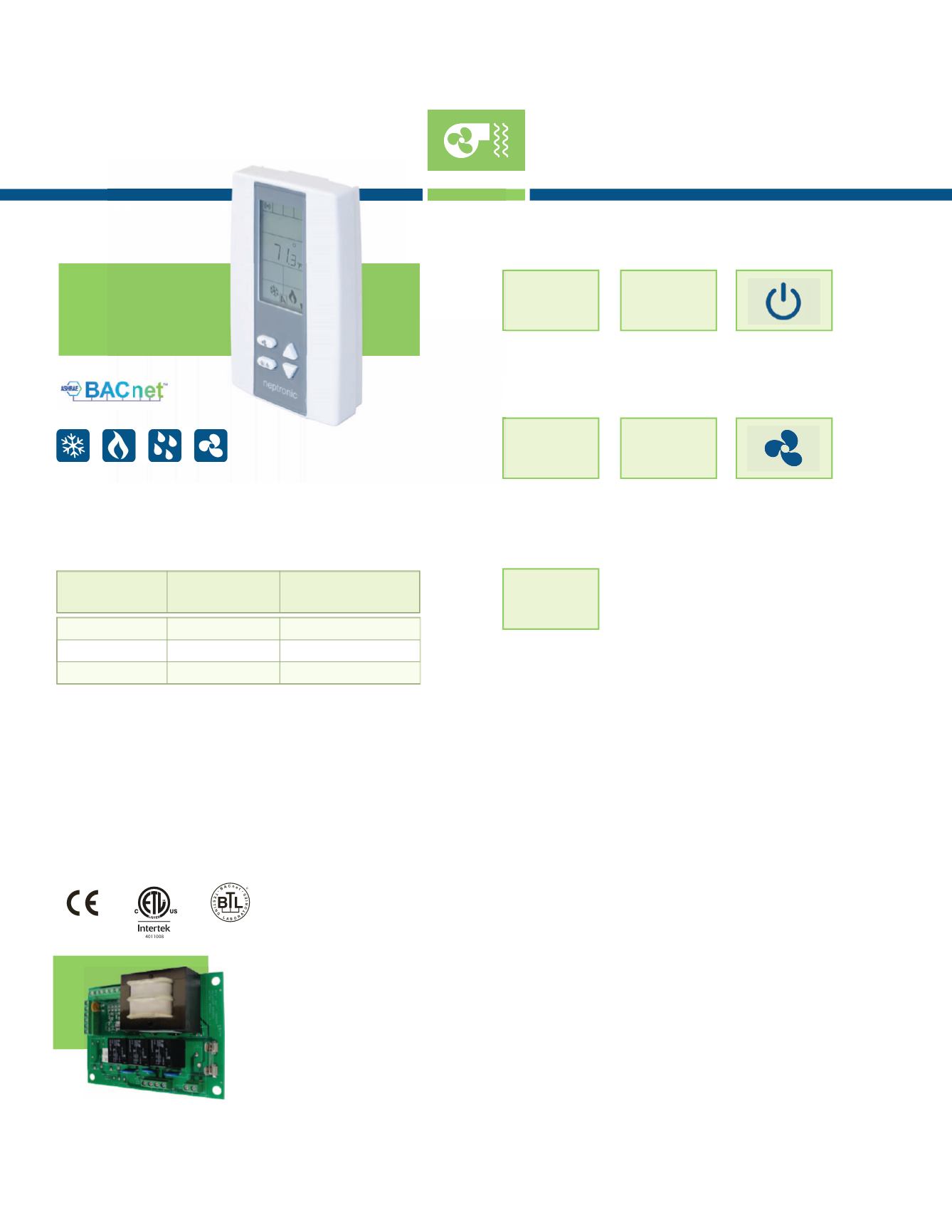

Controls Catalogue 2016

5 / 20

DI1 AI2
BO3 AO3
BAC
Models
Main Features
• Applications: Fan coil units (2 or 4 pipes)
• Precise temperature control with programmable PI function
• Selectable internal or external temperature sensor
• Changeover by contact or external temperature sensor
• Freeze protection
• BACnet communication
Inputs
Outputs
Communication
1 Digital
(occ sensor)
2 Analog
(sensors)
24 Vac
3 TRIACs
(2 or 4 pipe, local reheat)
3 Analog 1,2 or 3* Speed
or ECM
BACnet
MS/TP
TFCB24F3XYZ1 - -
TFHB24F3XYZ1 - Yes
TFHB24F3XYZ2 Yes -
Model Internal
Humidity Sensor
Ext. Humidity Sensor
(SHC80 Included)
Fan Coil
Wall Mount Controller
nep t r on i c . com
Combination fan coil controller and room thermostat.
Run control wires directly to TFC unit.
• External humidity sensor (select models)
• Dehumidification sequence (select models)
• Backlit LCD with simple icon and text driven menus
• Selectable Fahrenheit or Celsius scale
• Manual no occupancy override
• Multi level lockable access menu
Features
• 240/120 Vac
• 3, 4 or 5 contacts, 7A
• Also available in a metal box with secure
4-point mounting
• LED indication of relay status
• Fused 240/120 Vac & 24 Vac circuits
Applications
• Ideal for fan coil applications where
240/120 Vac equipment must be controlled
by a 24Vac thermostat controller
• Designed to operate with TFC series
thermostat
*Configurable
