Features
• Small footprint
• Simple and easy to install
• Selectable output signal (0-10 or 2-10 Vdc & 4-20 or 0-20mA)
• High flow impedance in the range of tens to hundreds of kPa
Applications
• Measures the pressure differential and converts the value to an
analog signal (mA or Vdc). Primarily used in conjunction with a
controller for bypass damper actuators in VAV systems.
Pressure
nep t r on i c . com
Features
• LCD Display
• Simple installation and configuration
• Displays actual pressure reading
• Adjustable setpoint and dead band
• Adjustable response speed
• Selectable output signal
• Direct or reverse action outputs
• Fully calibrated
• Real-time pressure output for remote monitoring
Applications
• Control bypass damper actuators, a VFD, or Vortex for VAV
systems
• Laboratory pressurization control
• Stairwell pressurization control
• Energy saving
SPC 0.1 0 to 0.1" w.c.[25 Pa]
SPC 1.0 0 to 1.0" w.c.[250 Pa]
SPC 2.0 0 to 2.0" w.c.[500 Pa]
SPC 5.0 0 to 5.0" w.c.[1245 Pa]
Model Pressure
Range

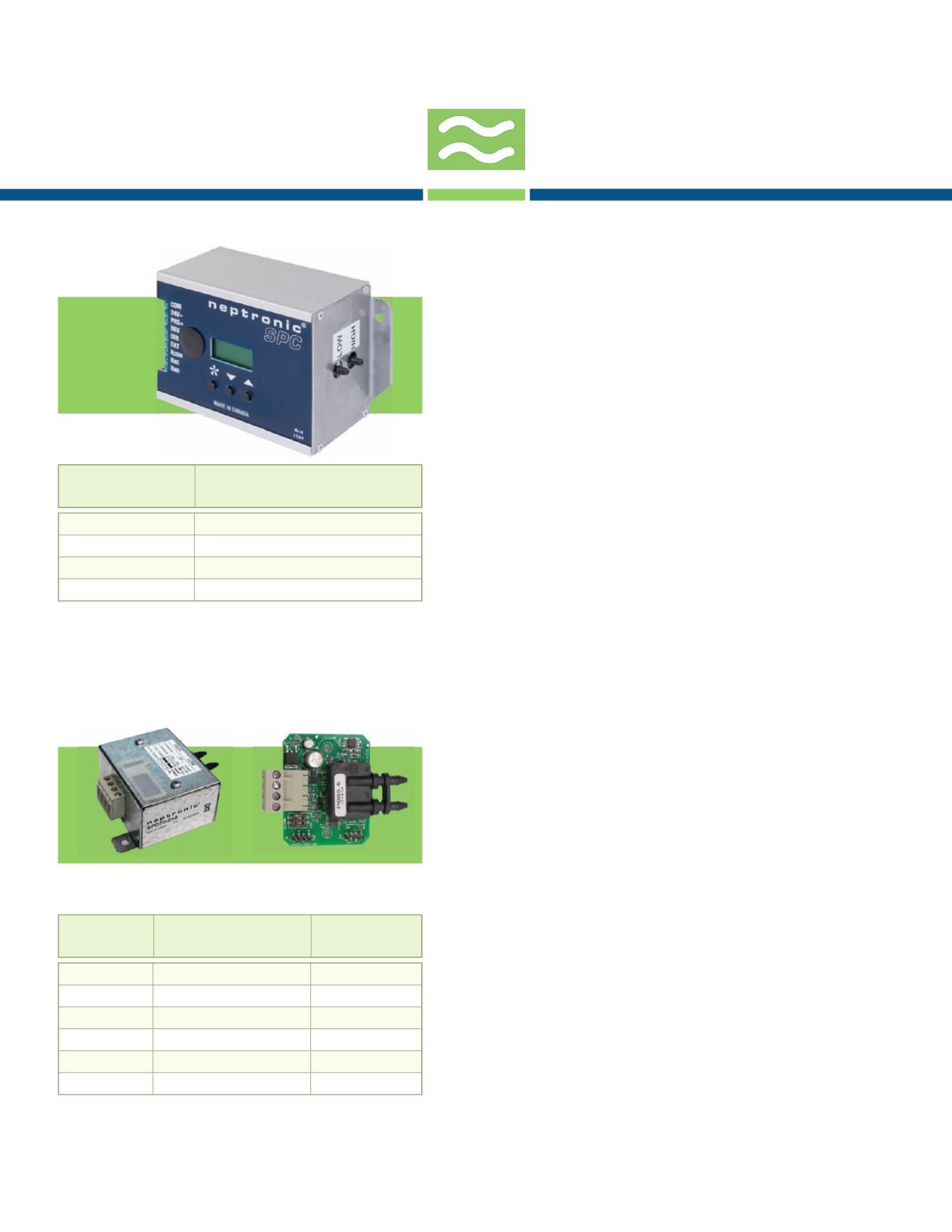

SPD70
(with metal enclosure)
SPD00-010 0-1" w.c.[250 Pa] PCB only
SPD70-010 0-1" w.c.[250 Pa] Metal enclosure
SPD00-020 0-2" w.c.[500 Pa] PCB only
SPD70-020 0-2" w.c.[500 Pa] Metal enclosure
SPD00-050 0-5" w.c.[1245 Pa] PCB only
SPD70-050 0-5" w.c.[1245 Pa] Metal enclosure
Model Pressure
Range Enclosure
SPD00
(PCB only)
