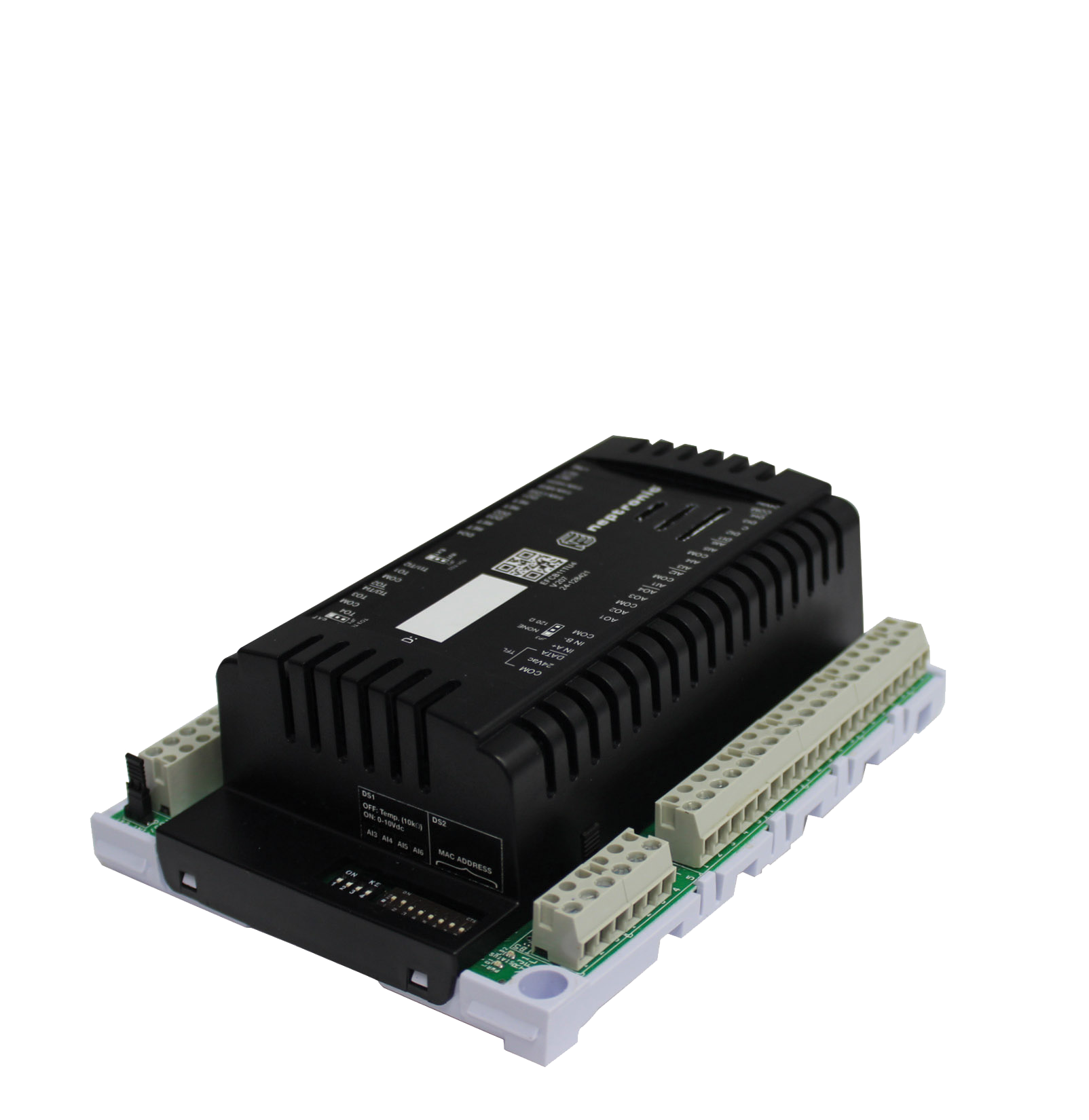

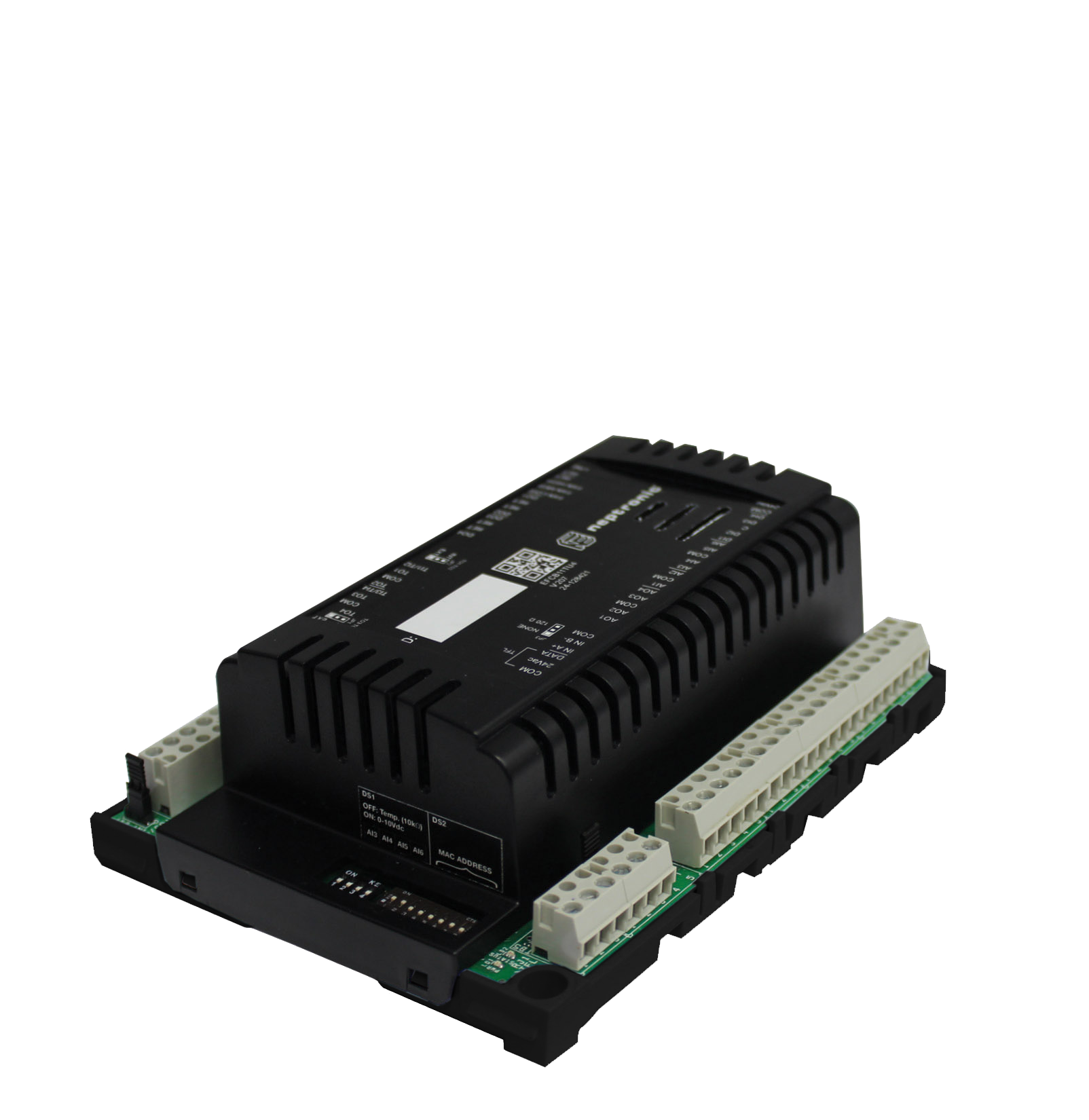

EFCB - Fan Coil Controls

  • Fully configurable application specific controller
  • Native BACnet MS/TP or Modbus (selectable)
  • 24, 120 or 240Vac operation
  • Up to 10 inputs and 15 outputs
  • Optional humidification and dehumidification sequences
  • New Digital Room Sensors to choose from
Digital Room Sensors for your EFCB Controller
  • Horizontal or vertical design
  • 3 Colour options
  • Combination fan coil controller and room thermostat
  • Run control wires from fan coil unit directly to controller
  • BACnet or stand-alone
  • 1 or 3 speed or analog (ECM) fan control
  • 2 inputs and 7 outputs
  • Combination fan coil controller and room thermostat
  • Run control wires from fan coil unit directly to controller
  • BACnet or stand-alone
  • 24Vac
  • Up to 3 inputs and 6 outputs
  • Universal applications
  • Fully configurable: up to 4 inputs & 10 outputs
  • 1 to 3 speed or analog (ECM) fan control
  • BMS integration via BACnet MS/TP or Modbus
  • BACnet scheduler

  • EFCB

    Unit Controller

    Unit Controller with

  • TDF & TFL

    Digital Room Sensors
    for the EFCB

    Wall Mount Controller

  • TUxB

    Wall Mount Universal
    Controller

    Wall Mount Controller

  • TSU & TSUB

    Wall Mount
    Controller

    Wall Mount Controller

  • TFC24 & TFC54

    Wall Mount
    Controller

    Wall Mount Controller

Tech Time
EFC - Unit Controller with TFL Thermostat

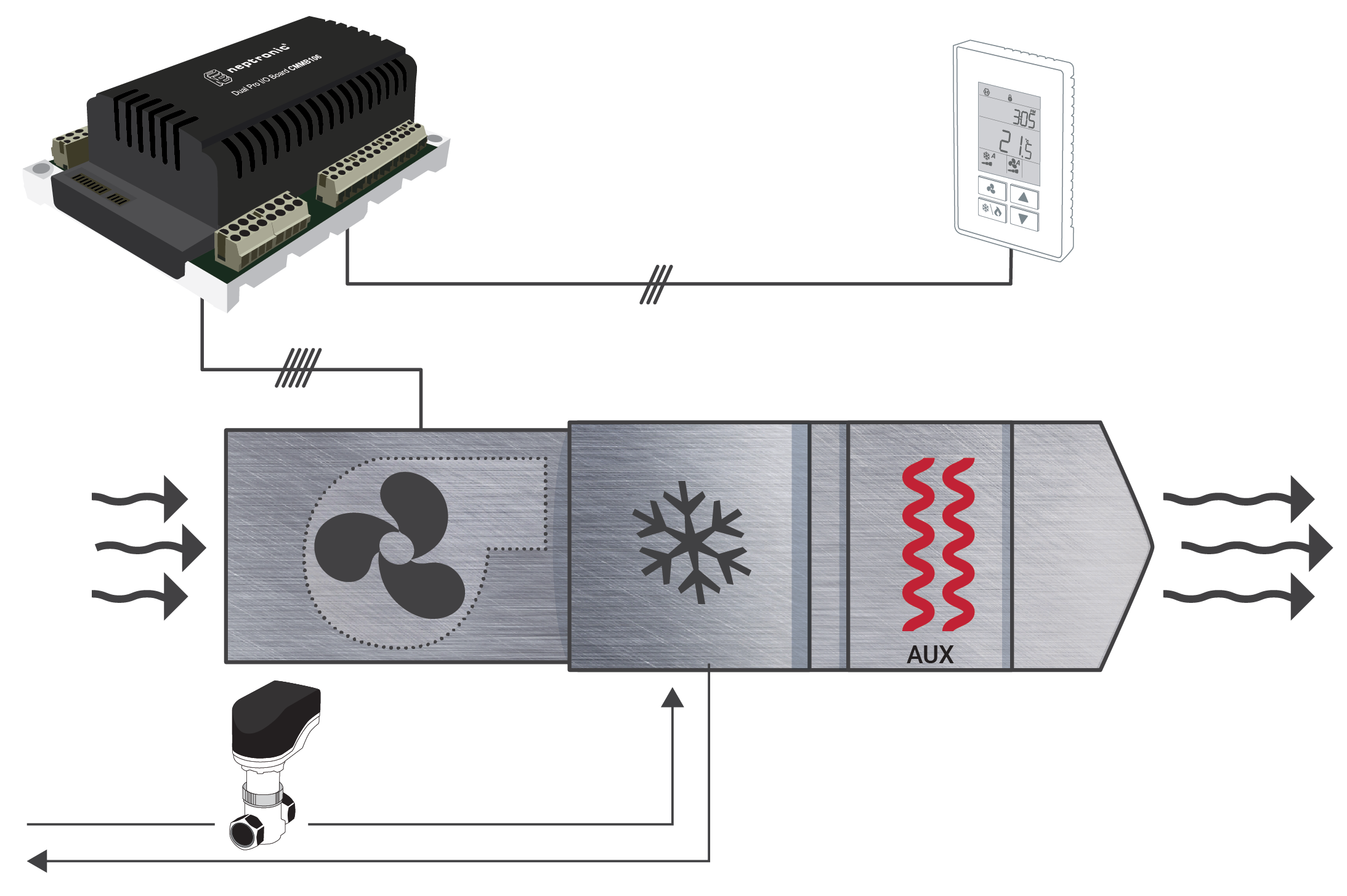

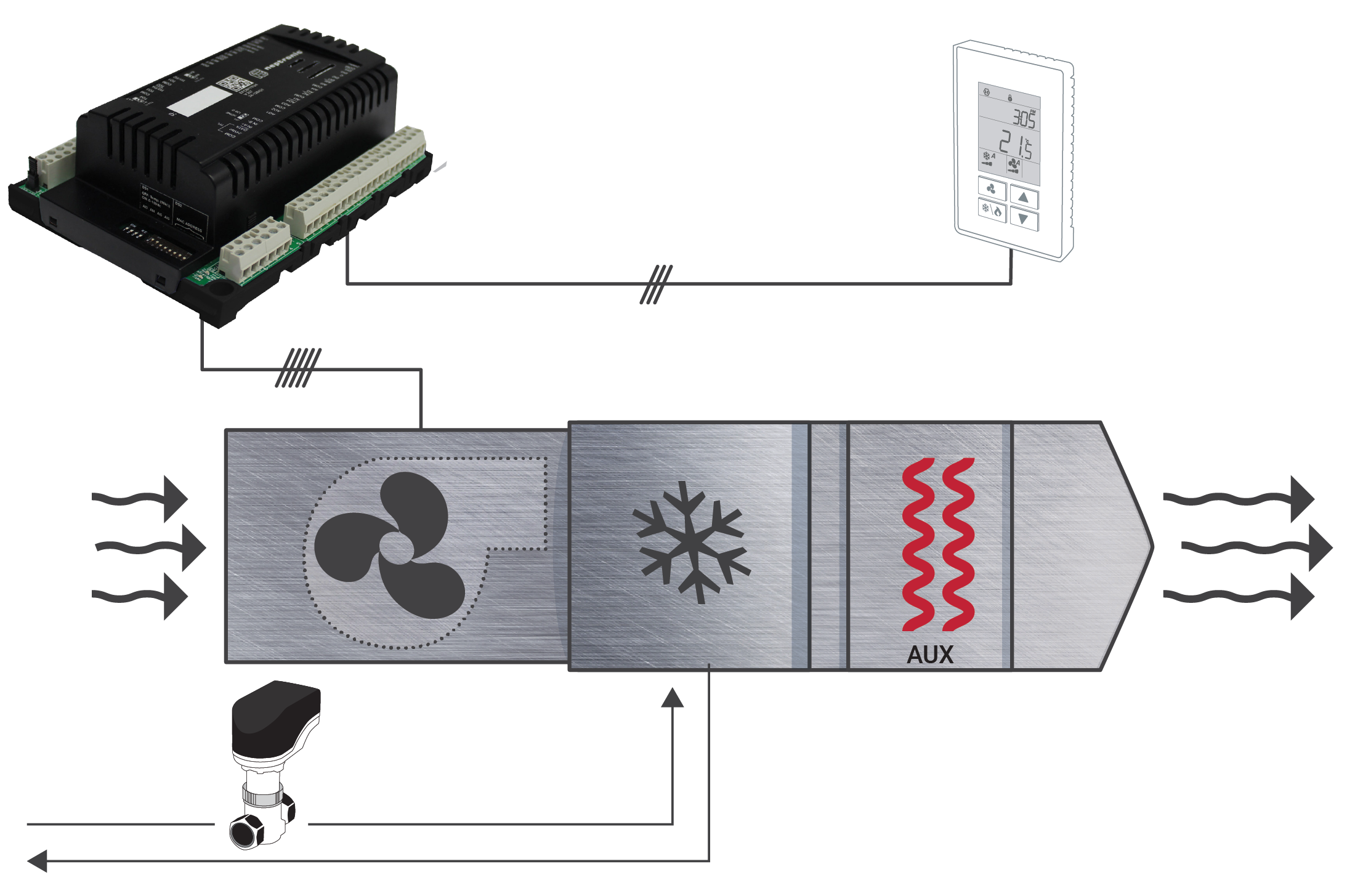

Overview: 2-Pipe System

EFCB Unit ControllerMounts in fan coil unit

Digital Room Sensor (TDF or TFL) 3-wire connection to EFCB

Multiple Control Wires
3 Wires

EFCB Controller

  • TO1TRIAC
  • TO2TRIAC
  • TO3TRIAC
  • TO4TRIAC
  • AO1Cooling / Heating
  • AO2Cooling / Heating
  • AO3Analog Output 3
  • AO4Analog Output 4
  • DO1 - DO4:optional digital outputs
  • Low
  • Med
  • Hi
  • DI1 - DI4:Sensor inputs (on/off)
  • AI1 - AI6:Sensor input(analog)
  • A+BACnet/Modbus
  • B-
  • Digital Room Sensor (TDF or TFL)

Details

Control Features
  • Configurable inputs:
    • 4 analog inputs (0-10Vdc or 10K Ohms )
    • 3 dedicated sensor inputs
    • 3 configurable digital inputs
  • Configuable outputs:
    • 4 analog outputs
    • 4 TRIAC outputs
    • 3 fan outputs
    • Up to 4 digital outputs
  • Configurable PI (Proportional-Integral) function
  • Selectable proportional control band and dead band per ramp
  • 3-speed or ECM (analog) fan control
  • Selectable internal or external temperature sensor (10KΩ)
  • Change over by contact or external temperature sensor
  • Freeze protection
  • Optional humidifcation and dehumidifcation sequences
Operational Features
  • Controller available in 24Vac, 120Vac & 240Vac
  • Manual night set back or no occupancy override
  • Multi level lockable access menu
  • Lockable setpoint
  • Removable, raising clamp, non-strip terminals
  • 24Vac thermal fuse for overheat protection
Network Communication
  • BACnet MS/TP or Modbus RTU communication (selectable via menu)
  • Select MAC address via DIP switch or via network
BACnet MS/TP
  • MS/TP @9600, 19200, 38400 or 76800 bps
  • BACnet scheduler (up to 6 events)
  • Firmware upgradeable via network
  • COV (change of value)
  • Copy and broadcast configuration to other EFCB modules via menu or network
  • Automatic baud rate detection
  • Automatic device instance configuration
Modbus RTU
  • Modbus RTU @9600, 19200, 38400 or 57600 bps
  • RTU Slave, 8 bits (configurable parity and stop bits)
  • Connects to any Modbus RTU master

Models

Pricing
Product Model List
Price		 Type Extra 3A Relay
Fan Coil Unit Controllers EFCB10TU2 $ 696 24Vac 2
EFCB10TU4 $ 749 4
EFCB11TU2 $ 725 120Vac 2
EFCB11TU4 $ 778 4
EFCB12TU2 $ 725 240Vac 2
EFCB12TU4 $ 778 4
Middle East and
Asian Markets		 EFCB10T-OE1 $ 541 24Vac 0
EFCB10TU2-OE1 $ 696 2
EFCB10TU4-OE1 $ 749 4
EFCB12T-OE1 $ 669 240Vac 0
EFCB12TU2-OE1 $ 725 2
EFCB12TU4-OE1 $ 778 4
*OE1 models are for middle eastern and asian markets only

Applications
  • 2 or 4 pipe systems
  • Fan coil unit (up to 3 speeds and/or analog 0-10Vdc)
  • Cooling signal (on/off, floating or modulating 0-10Vdc)
  • Heating signal (on/off, floating, pulse or modulating 0-10Vdc)
  • Reheat signal (on/off, pulse or modulating 0-10Vdc)
Overview: 2-Pipe System

EFCB Unit ControllerMounts in fan coil unit

Digital Room Sensor (TDF or TFL) 3-wire connection to EFCB

Multiple Control Wires
3 Wires

EFCB Controller

  • TO1TRIAC
  • TO2TRIAC
  • TO3TRIAC
  • TO4TRIAC
  • AO1Cooling / Heating
  • AO2Cooling / Heating
  • AO3Analog Output 3
  • AO4Analog Output 4
  • DO1 - DO4:optional digital outputs
  • Low
  • Med
  • Hi
  • DI1 - DI4:Sensor inputs (on/off)
  • AI1 - AI6:Sensor input(analog)
  • A+BACnet/Modbus
  • B-
  • Digital Room Sensor (TDF or TFL)

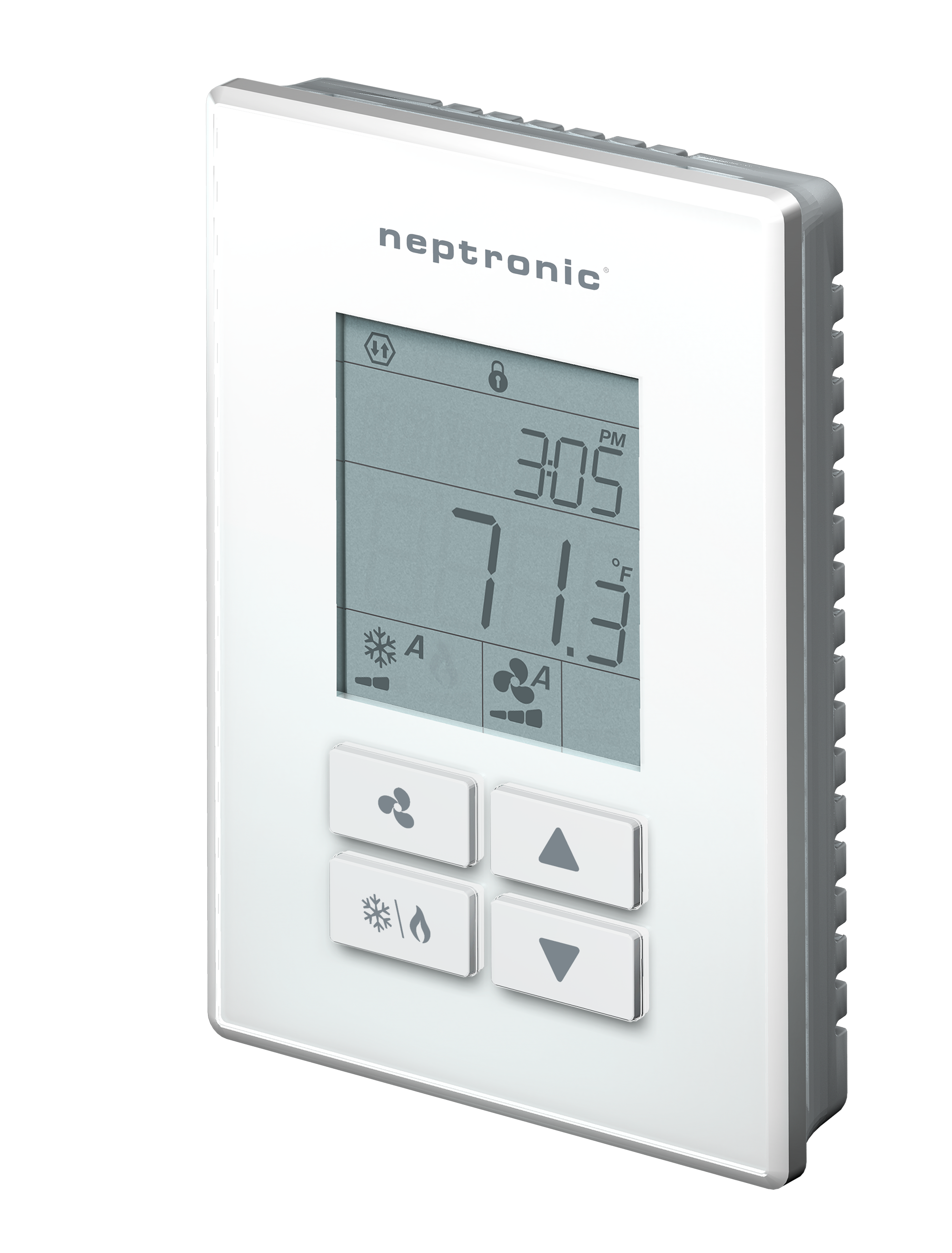

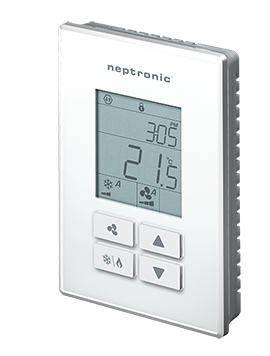

TDF - Universal Digital Room Sensor

Features

  • Built-in temperature sensor and optional humidity, VOC, CO2 and occupancy sensors (select models)
  • Elegant design
  • Universal wall-mount design
  • Used to configure and operate the EFCB fan coil controllers
  • Simple 3-wire connection to controllers
  • Selectable Fahrenheit or Celsius scale
  • BACnet service port via on-board mini USB connector
  • Vertical or horizontal configuration

Available in a range of colours

TDF00
TDF30
TDF60
Vertical Models Price Temp RH CO2 PIR VOC
$ 177 •
$ 384 • •
$ 890 • • •
$ 682 • •
$ 311 • •
$ 594 • • •
$ 1,384 • • • •
$ 1,532 • • • • •
$ 1,039 • • • •
TDF10
TDF40
TDF70
Horizontal Models Price Temp RH CO2
$ 227 •
$ 419 • •
$ 957 • • •
$ 767 • •

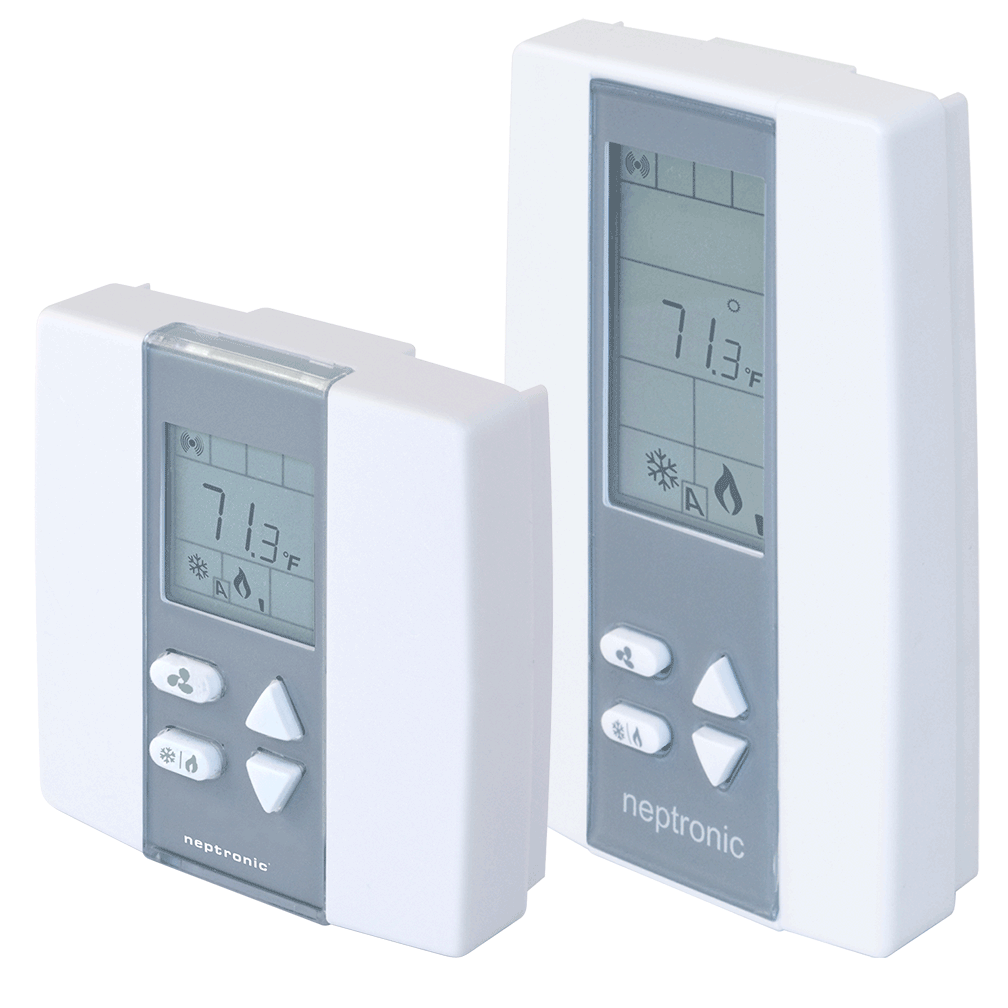

TFL – Digital Room Sensor

Features

  • Built-in temperature sensor and optional humidity and CO2 sensors (select models)
  • Backlit LCD with simple icon and text driven menus
  • BACnet service port via on-board mini USB connector
  • Selectable Fahrenheit or Celsius scale
  • Used to configure and operate EVCB VAV Controllers
  • Simple 3-wire connection to controllers

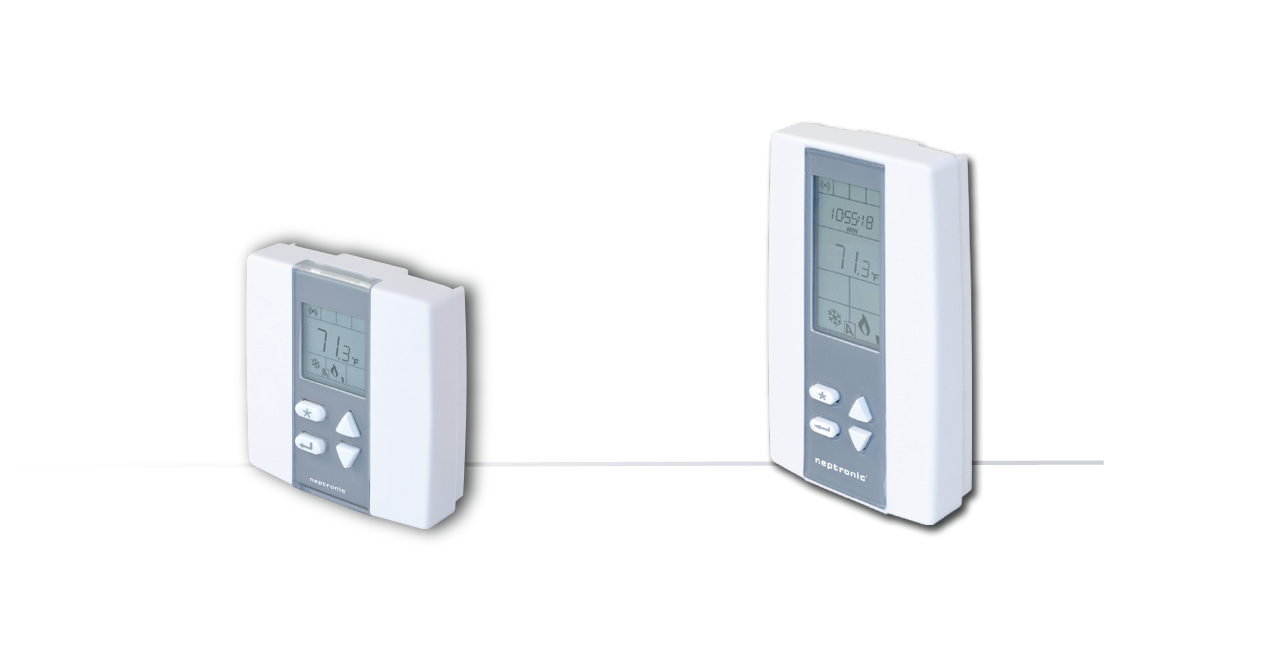

TFL54
TFL24
Model # Price Type Temp. Humidity CO2
TFL54 $ 143 3x3 •
TFL24 $ 170 2x4 •
TFLH24-INT $ 398 • Internal
TFLH24-EXT $ 586 • External*
TFLG24 $ 711 • •
TFLGH24 $ 902 • Internal •
*price includes an SHC80 duct mount humidity sensor

Details

Features
  • Built in temperature sensor with optional humidity, and occupancy sensors (select models)
  • Real time clock (RTC) with 24-hour backup
  • 7-day programmable schedule
  • Precise temperature control with configurable PI (Proportional-Integral) function
  • Selectable internal or external temperature sensor
  • Occupancy and night set back (NSB) mode
  • Option of pulse/floating/on-off output on binary outputs
  • Compressor anti-cycling delay (configurable)
  • ΔT control (on request)
Network Communication (TSUB Models Only)
  • BACnet MS/TP or Modbus communication (selectable via menu)
  • Select MAC address via menu or via network
  • Automatic baud rate detection

BACnet MS/TP

  • Automatic device instance configuration
  • Copy & broadcast configuration via menu or via BACnet to other controllers
  • BACnet scheduler (up to 6 events per day)
  • Firmware upgradeable via BACnet
  • Supports COV (change of value)

Modbus

  • Modbus @ 9600, 19200, 38400, or 57600 bps
  • RTU Slave, 8 bits (configurable parity and stop bits)
  • Connects to any Modbus master

Models

Stand-Alone Models
Model Price Temp. RH PIR
TSU00-110 $ 388 •
TSU00-111 $ 748 • •
TSU00-114 $ 487 • •
TSU00-115 $ 847 • • •
BACnet Models
Model Price Temp RH PIR
$ 522 •
$ 890 • •
$559 • •
$ 895 • • •
Applications
  • Fan coil units (2 or 4 pipes)

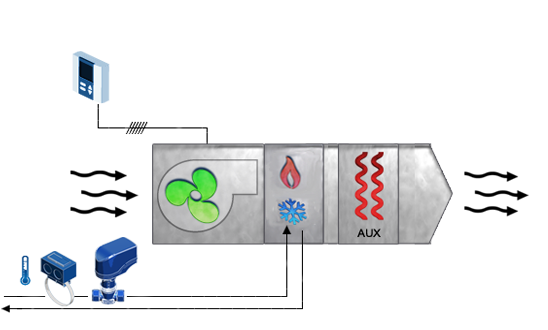

TFC54 - Fan Coil Wall Mount Controller

2 Pipe System
Heat
Cool
MultipleControl Wires
TFC54F3Y1 Wall Mount Controller
Run all control wires directly to TFC54F3Y1

TFC54

  • AI1External Changeover
  • AI2NSB sensor
  • TO1*Cool/Heat
  • TO2*Optional TRIAC
  • DO1Fan High
  • DO2Fan Medium
  • DO3Fan Low
  • * Also available with analog outputs

Details

Control Features
  • Configurable inputs and outputs:
    • 2 TRIAC outputs or 2 analog outputs (depends on model)
    • 3 fan speed digital outputs (dry contacts)
    • 2 inputs
  • Selectable internal or external temperature sensor
  • Changeover by contact or external temperature sensor
  • Selectable proportional control band and dead band
Operational Features
  • 24Vac operation
  • Backlit LCD with simple icon and text driven menus
  • Selectable Fahrenheit or Celsius scale
  • Manual night set back override
  • Multi level lockable access menu
  • Lockable setpoint

Models

Stand-Alone Models
Model List
Price		 On-off
(TRIAC)		 Analog
(0-10Vdc)
TFC54F3Y1 $ 240 Yes -
TFC54F3X1 $ 240 - Yes
Applications
  • 2 pipe systems
  • 4 pipe systems

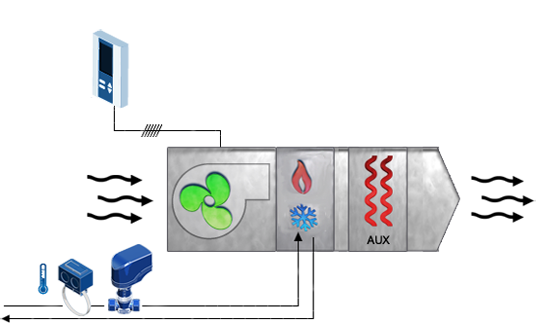

TFC24 Fan Coil Wall Mount Controller

TFC24

2 Pipe System
Heat
Cool
Multiple
Control Wires
TFC24 Wall Mount Controller
Run all control wires directly to TFC24
  • TO1*TRIAC(2-pipe/4-pipe)
  • TO2*TRIAC(2-pipe/4-pipe)
  • TO3*Local Reheat
  • DO1Fan High
  • DO2Fan Medium
  • DO3Fan Low
  • DI1Occupancy sensor
  • AI1Ext. temp sensor
  • AI2External changeover
  • AO12 Pipe analog(heat/cool)
  • AO2Analog output
  • AO3Reheat

  • A+Optional
  • B-BACnet
  • * Not used if set to analog control

Details

Control Features
  • Configurable inputs and outputs:
    • Up to 3 outputs (0-10Vdc, floating, on/off, or pulsed)
    • Up to 3 digital outputs (3-speed fan control)
    • Up to 3 inputs
  • Precise temperature control with programmable PI function
  • Selectable internal or external temperature sensor
  • Changeover by contact or external temperature sensor
  • Anti-freeze protection
  • 7-day schedule (select models)
Operational Features
  • 24Vac operation
  • Backlit LCD with simple icon and text driven menus
  • Selectable Fahrenheit or Celsius scale
  • Manual night set back override
  • Multi level lockable access menu
  • Lockable setpoint
BACnet Models Only
  • BACnet® MS/TP @ 9600, 19200, 38400, or 76800bps
  • Selectable MAC address
  • Manual or automatic device instance configuration
  • Automatic Baud Rate Detection
  • Copy and broadcast configuration to other devices with same model #

Models

BACnet Models
Model List
Price		 Schedular
TFCB24F3XYZ1 $ 613 -
Stand-Alone Models
Model List
Price		 Schedular
TFC24F3XYZ1 $ 336 -
TFC24F3XYZ3 $ 352 Yes
Applications
  • 2 pipe systems
  • 4 pipe systems
Tech Time
TUUB - Wall Mount Universal Controller
  • Packaged AC
    Rooftop Units
  • Heat Pumps
  • Fan Coils

Details

Features
  • Built-in temperature sensor and optional humidity, VOC, C2 and occupancy sensors (select models).
  • Real time clock (RTC) with 24-hour backup
  • Precise temperature control with configurable PI (Proportional-Integral) function
  • Selectable internal or external temperature sensor
  • Occupancy and night set back (NSB) mode
  • Option of pulse/floating/on-off output on binary outputs
  • Compressor anti-cycling delay (configurable)
  • ΔT control (on request)
  • Selectable BACnet MS/TP or Modbus communication
Network Communication
  • BACnet MS/TP or Modbus communication (selectable via menu)
  • Select MAC address via menu or via network
  • Automatic baud rate detection

BACnet MS/TP

  • Automatic device instance configuration
  • Copy & broadcast configuration via menu or via BACnet to other controllers
  • BACnet scheduler (up to 6 events per day)
  • Firmware upgradeable via BACnet
  • Supports COV (change of value)

Modbus

  • Modbus @ 9600, 19200, 38400, or 57600 bps
  • RTU Slave, 8 bits (configurable parity and stop bits)
  • Connects to any Modbus master
Applications
  • Fan coil units (2 or 4 pipes)
  • Rooftop units
  • Heat pumps
  • Humidity control
  • Packaged or split unitary systems
  • Other heating/cooling equipment

Models

TUUB Models
Models Price Temp RH CO2 PIR VOC
$ 694 •
$ 1,062 • •
$ 1,555 • • •
$ 1,186 • •
$ 793 • •
$ 1,161 • • •
$ 2,048 • • • •
$ 2,147 • • • • •
TUCB/TUHB- Wall Mount Universal Controller
  • Packaged AC
    Rooftop Units
  • Heat Pumps
  • Fan Coils

Applications
  • Heat pumps
  • Packaged AC rooftop units
  • Fan coils
  • Humidity control
  • CO2 alarms
  • Other heating/cooling equipment

Models

Pricing
Model List Price BI* AI* BO* AO*
TUCB24C6X2 $ 642 2 2 6 2
TUHB24C6X2 $ 1,028 2 2 6 2
* fully configurable for universal applications
Louis Banner

Latest News

Neptronic to attend the Air and Refrigeration Industry event organized by CETAF Neptronic to attend the Air and Refrigeration Industry event organized by CETAF
Unlocking advanced HVAC management with Neptronic Cloud-based Zoning system Unlocking advanced HVAC management with Neptronic Cloud-based Zoning system
Neptronic humidifiers feature Reverse Osmosis and Water Treatment Systems Neptronic humidifiers feature Reverse Osmosis and Water Treatment Systems
See All News
