Reverse Osmosis and Water Treatment Systems

Home Humidifiers Water Treatment

Reverse Osmosis and Water Treatment Systems

Reverse Osmosis

Capacities at up to 3000lbs/hr
Tailored for Neptronic adiabatic and isothermal humidifiers
Adaptable storage and pretreatment configurations

RO System Accessories

Capacities at up to 3000lbs/hr
Tailored for Neptronic adiabatic and isothermal humidifiers
Adaptable storage and pretreatment configurations

Reverse Osmosis Systems
RO System Accessories

Tech Time

60Hz
Brochure
Water Treatment Brochure (EN)

RO Systems - Overview

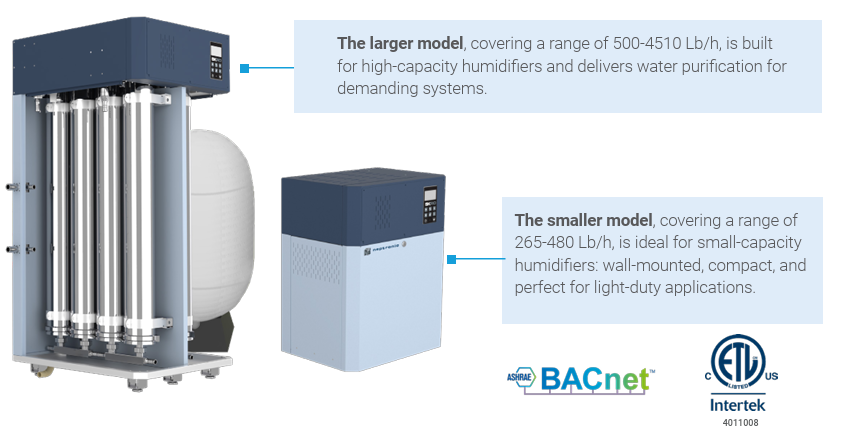

Neptronic reverse osmosis water treatment systems ensure maintenance-free operation of our isothermal humidifiers (SKE, SKG, and SKS) and are an integrated component of our adiabatic high-pressure spray SKH.

Neptronic WP series reverse osmosis systems are available with an array of storage and pre-treatment options. We understand every installation is unique, and our experts can help tailor a water treatment approach to a humidification project.

Available in capacities up to 3000lbs/hr, and voltages ranging from 120/1-ph to 460/3-ph
Activated carbon, softeners, and anti-scale injection pretreatment
Powder coated frames and stainless-steel membrane vessels

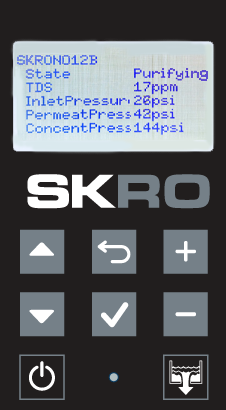

PLC Controller option
Multiple storage options
Humidifier functionality can engage RO during offseason to prevent stagnation.

Advantages of using water treatment systems for Neptronic humidifiers

Eliminate maintenance on multiple humidifiers with single RO system.
Reduce frequency of drain cycles to improve uptime for critical operations
Prevent foaming in humidifier tanks

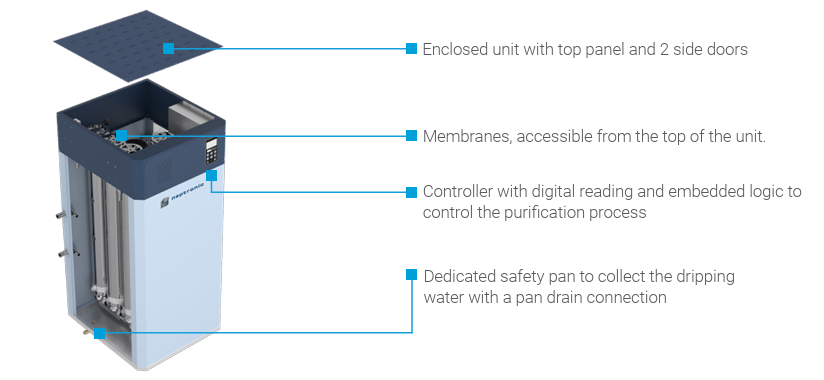

System Overview

Integrated sediment filter and activated carbon pretreatment
All systems feature recycle flow to reduce water usage
Integrated pressure and flow gauges
Low pressure pump protection
Integrated pressure controls for pressurized accumulation tanks
Auto-reset options for low-pressure alarms
WP440L series features battle-tested PLC controller.

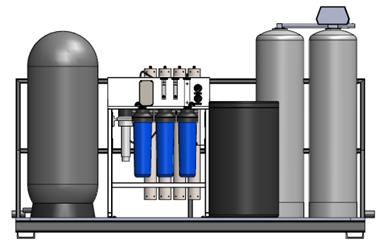

Pretreatment

Several accessories are required to complete the water treatment system. In most water qualities, a softener or antiscale injection is required to pretreat the water upstream of the RO system. This ensures RO membranes do not scale over. Large capacity activated carbon filters prevent chlorine from oxidizing reverse osmosis membranes.

Single and twin softeners
Antiscale Injection
Standalone Activated carbon tanks

Storage

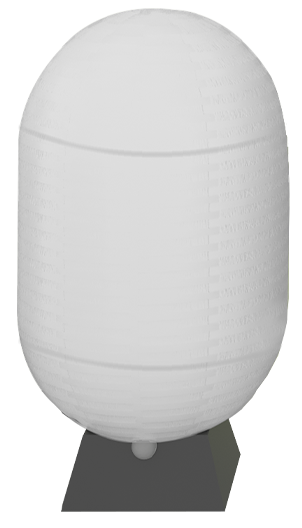

Storage is also a key component of the water treatment system. There should be enough buffer to ensure humidifier boiling chambers can fill rapidly. When large capacities are needed, atmospheric tanks can be used with booster pumps and UV sterilization.
