SKH4 - Atomizing High Pressure Humidifier

Overview
  • Capacities up to 2800 lb/hr (1250 L/hr)
  • Up to 4 zones
  • Installation in-duct or in-space
Distribution
  • Capacities up to 2800 lb/hr (1250 L/hr)
  • Up to 4 zones
  • Installation in-duct or in-space
Integrated, Multi-Platform Controller
  • Capacities up to 2800 lb/hr (1250 L/hr)
  • Up to 4 zones
  • Installation in-duct or in-space
Sensors and Controls
  • Higher energy conservation
  • Lower costs and higher values
  • Seamless integration and interoperability
SKH4 - Evaporative SKH4 - Controller
  • Overview

  • Distribution

  • Integrated, Multi-Platform Controller

  • Humidity Sensors and Controls

SKH4 - Overview

Overview

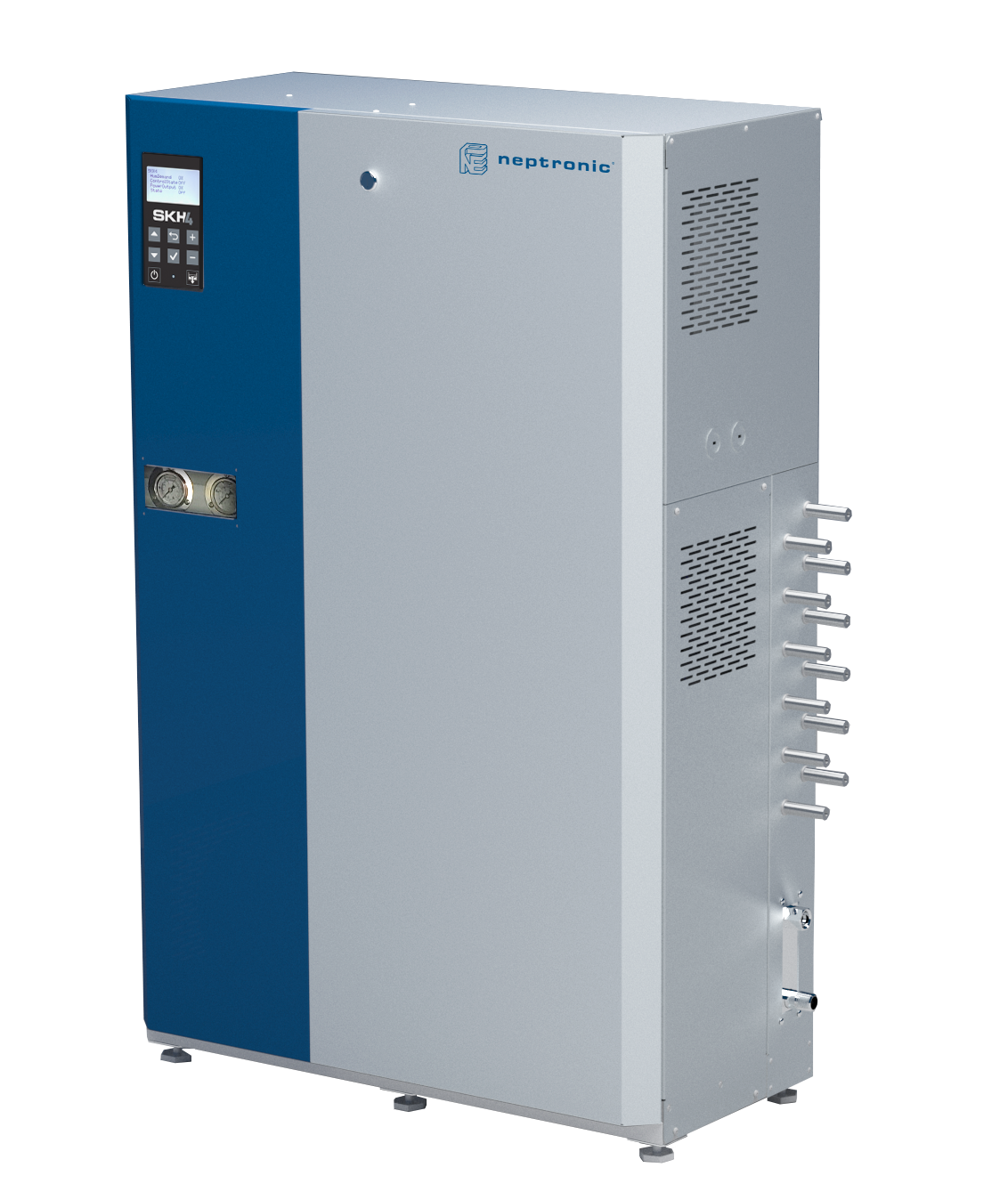

The SKH4 pumps water at high pressure of 1,000 psi (70 bar) through a series of nozzles to produce a fine mist. The adiabatic evaporation used by the SKH4 takes energy (heat) from the surrounding air to evaporate the fine mist (water droplets). This evaporative cooling/humidification process provides large output capacities of 210-2,800 lb/h (100-1,250 kg/h), that can be modulated with a high turndown ratio of 20 lb/h (10 kg/h).

The power consumption is very low for the high load of humidification produced, compared with isothermal technologies or even other adiabatic technologies such as compressed air. The range of the motor from 1/2 to 5HP (0.4 kW to 3.7 kW) can generate high-cost savings on the humidification process and on the cooling load of a space.

The SKH4’s controller can be configured with either temperature control for a cooling application or humidity control for humidification. It allows you to temper industrial and commercial indoor areas where heat build-ups could be unfavourable to occupants, production, and material goods.

Distribution takes place from the nozzles which are placed directly in space or inside a duct, for added precision. Fan-assisted distributors can help with the efficiency and homogeneity of the distribution of the cooled humid air.

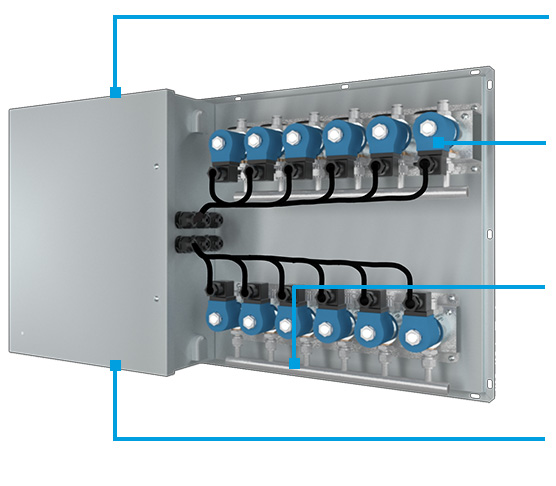

Stainless Steel panel
Nema 4 Type panel in stainless steel to house control connections for valves and fan-assisted distributors.

Configurable number of valves for each application Remote Valve Panel (RVP) can be configured with only drain valves, to be placed at the end of a long run network, avoiding the return piping distributors.

Distribution Manifold Branch out the stages from the RVP to a far away zone to limit pressure losses created by multiple long runs from the pump unit.

Fan assisted control point Dedicated connection point to control the activation of the fan-assisted distributors.

SKE4 OVerview Brands

Features

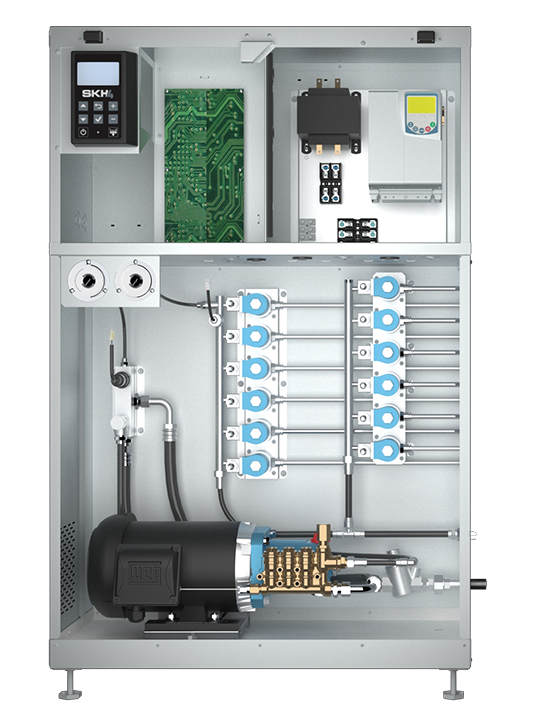

  • Low maintenance and hygienic stainless-steel water-lubricated pump
  • Pump station capacity 210-2,800 lb/h (100-1,250 L/h)
  • Cost-effective on/off motor
  • Energy efficient VFD motor
  • Up to six stage valves
  • Valves inside pump station or remote
  • Up to four zones per pump station
  • Integrated multi-platform controller
  • 6-10 lb/h (3-5 L/h) stainless steel anti-drip nozzle to spray water into fine 7-35 μm water droplets
  • New in-space fan-assisted mist distributors
  • Custom-made nozzle rack to fit your duct or AHU dimensions

Application

  • Industrial space (assembly area)
  • Wood processing (paper and textile)
  • Food industry (storage of fruits and vegetables)
  • Outdoor space (terrace and pool area)
  • Data centres and electronics
  • Printing and photography industry

Models

SKH4 - N 100 B 2-2 - E M
Frequency
N = 60Hz
Capacity
021 = 210 lb/h
050 = 500 lb/h
100 = 1000 lb/h
185 = 1850 lb/h
280 = 2800 lb/h
Pump type
B = Brass
S = SS oil free
Stage valve
0-6
Voltage
A = 120V / 1ph
B = 208V / 1ph
C = 220-240V / 1ph
D = 208V / 3ph
E = 220-240V / 3ph
F = 400V / 3ph
G = 480V / 3ph
H = 600V / 3ph
Motor control
Blank: On/Off
M = VFD
E = 50 Hz 010 = 100 L/h
022 = 220 L/h
045 = 450 L/h
085 = 850 L/h
125 = 1250 L/h
Drain valve:
0 - 6

Imperial units

Brass (lb/h) Model N021B N021B N100B N185B N280B
Maximum output – VFD 210 500 1000 1850 2800
Minimum output – VFD 52 125 250 462 700
Minimum output – VFD 20 20 20 20 20

Metric units

Brass (L/h) Model E010B E022B E045B E085B E125B
Maximum output – VFD 100 220 450 850 1250
Minimum output – VFD 10 10 10 10 20
Maximum output – On/Off (50Hz) 80 180 375 705 1040
Minimum output – On/Off (50Hz) 20 45 94 176 260

In-Space (Direct)

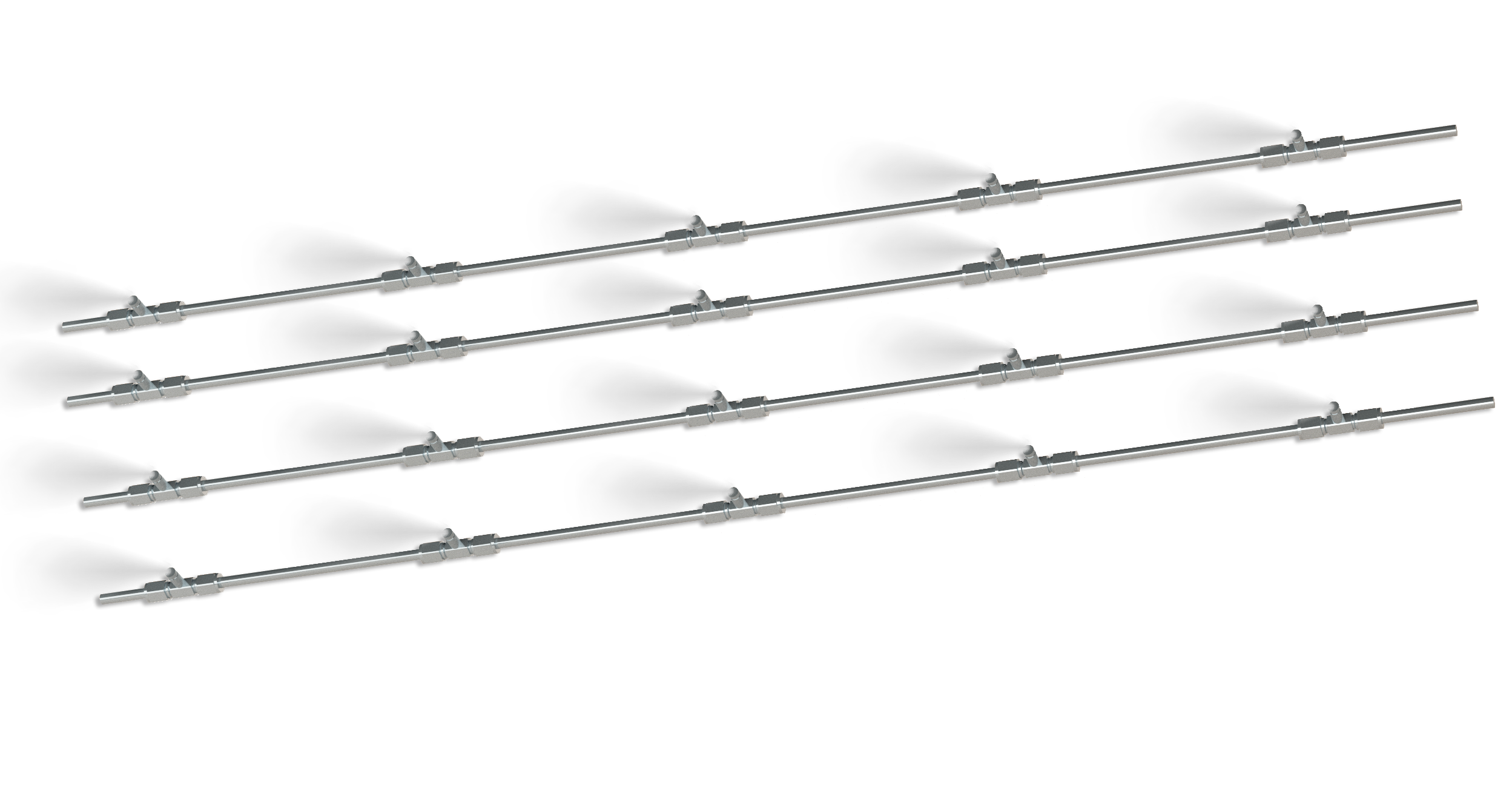

An array of nozzles on a high-pressure piping network creates a series of mist cones. The network then sprays in the space, starting from the pump unit or with the help of remote valve panel (RVP). The configuration of the in-space network is flexible, it can start from the pump or with remote valve panel added.

Advantages of In-Space Nozzle Rack:

  • The SKH4 misting nozzles can cover a large area, usually hanging from
  • Multiple installation options to fit every space
  • Cost effective solution ideal for large spaces with high ceilings (30ft / 9m)

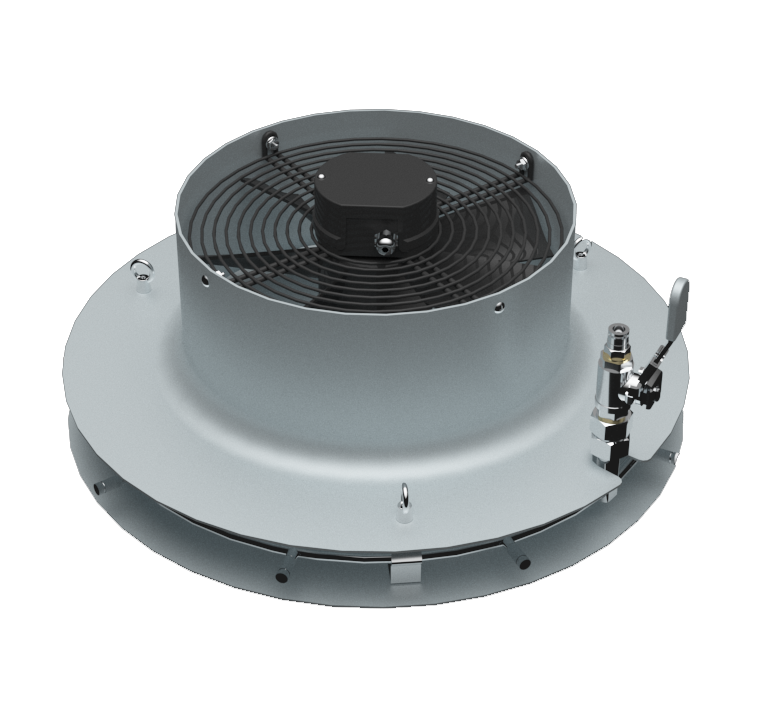

In-Space Radial spray (MDU)

Radial projection mist distributor uses an axial fan to help with absorption distances and homogeneity of the air in a room. Installed through suspension ropes from the ceiling, the MDU has a low footprint and helps cover a large area uniformly..

Advantages of the SKH4’s MDU:

  • High output
  • High coverage
  • Reduce absorption distance and improves air mix

The SKH4 MDU (Mist Distribution Unit) is a fan assisted distributor that will spread mist radially. Ideal for large space with low ceiling (15-20ft / 4.5-6m).

Model # Air Volume Nozzles Max. Capacity
CFM m3/h Qty Lb/h Kg/h
MDU-1000 1000 1700 6 to 9 40-100 18-45
MDU-2000 2000 3400 6 to 12 40-132 18-60

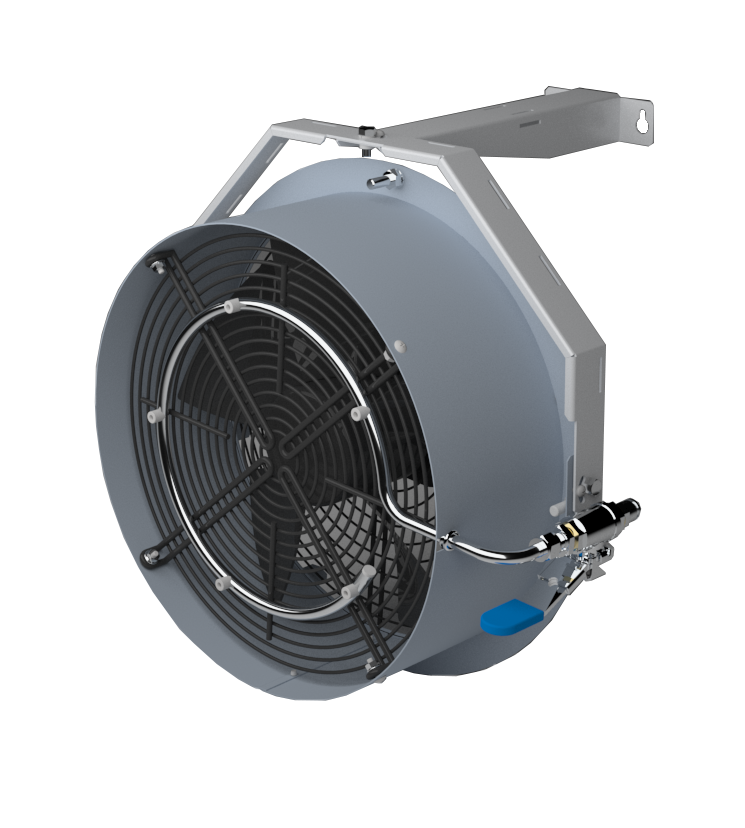

In-Space axial spray (ADU)

Axial projection mist distributor uses an axial fan to help with absorption distances and homogeneity of the air in a room. Installed on walls or beams, the ADU has multiple sizes to provide precise humidity distribution for every type of project.

  • Large range of output
  • Localize and precise output
  • Powerful front throw of cooled humid air

The SKH4 ADU (Axial Distribution Unit) is a fan-assisted distributor that will blow mist in the axial direction. Ideal for large spaces with low ceilings (8-20ft / 2.4-6m).

Model # Air Volume Nozzles Max. Capacity
CFM m3/h Qty Lb/h Kg/h
ADU-0200 200 340 1 6-11 3-5
ADU-1000 1000 1700 5 33-55 15-25

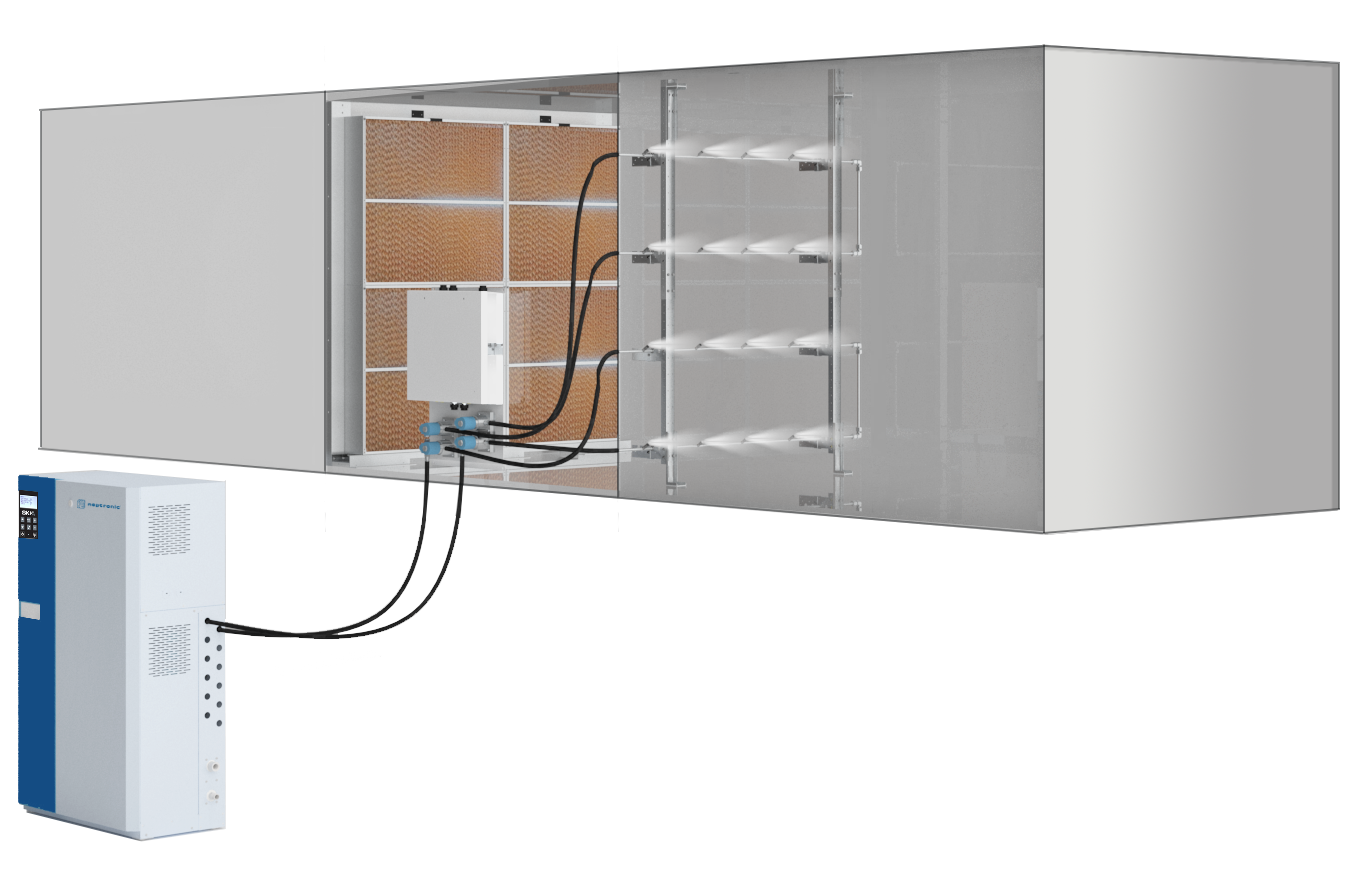

In-Duct Nozzle Rack

Custom-made nozzle rack and droplet separator has been installed in the duct or AHU for precise output and the mist absorption. Single pump unit can supply multiple ducts with or without remote valve panel (RVP).

Advantages of In-Duct Nozzle Rack:

  • Up to six stage valves to ensure precise humidity output
  • Spray contained in duct, no ceiling-height limitation

The SKH4 controller is configured specifically for your SKH4 — Atomizing High-Pressure Humidifier.

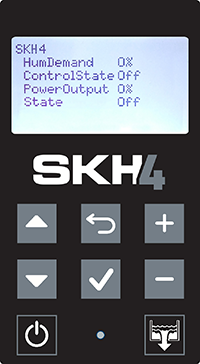

  • User-friendly, menu-driven interface on a 128 x 64 LCD with eight function buttons for faster configuration and operation
  • User rights management system allows for menu to display only functions available to the type of user logged in: End User, Service Technician, Installer, or Integrator
  • “Quick Config” menu allows for faster and easier installation, by displaying only the most used functions and configurations
  • Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
  • In-field firmware can be upgraded via SD card, USB or BACnet
  • Simple viewing and exporting of trending logs and alarm logs

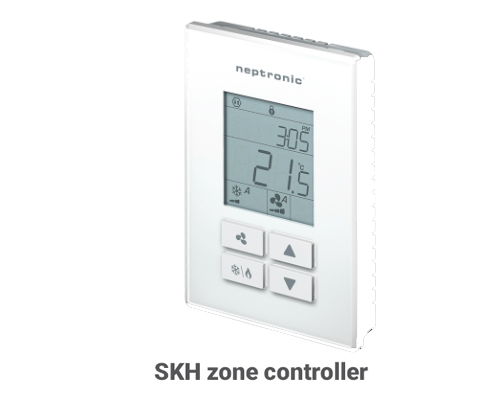

SKH4 - TRUB – Universal Wall-Mount Room Controller
  • Zone controller provides pump unit with zone demand
  • Up to four zones per pump unit
  • In space / In duct humidification
  • Configurable for all control types and protections
  • On / off demand, analog demand
  • Temperature / humidity control
  • Temperature / humidity modulating high limit
  • Remote sensors
  • Air flow, high limit, interlock protection
Optional Features
  • The selectable BACnet or Modbus communication interface allows access to over 75 objects / registers for integration with a BMS and IoT (Internet of Things)
  • Ethernet
  • Communication over MS/TP or IP connection
  • Web services make it possible to perform humidifier configurations, remote diagnostics and many more functions from any location

An updated and highly accurate line of sensors and controls was developed and produced by Neptronic specifically for the new SK4 series.

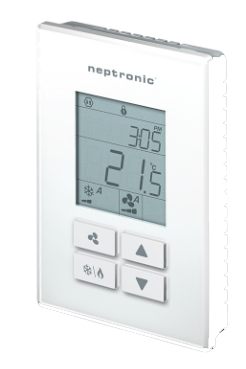

TRUB00-201 – Zone Controller

Details

  • Zone controller provides pump unit with zone demand
  • Up to four zones per pump unit
  • In space / In duct humidification
  • Configurable for all control types and protections
  • On / off demand, analog demand
  • Temperature / humidity control
  • Temperature / humidity modulating high limit
  • Remote sensors
  • Air flow, high limit, interlock protection

Details

  • SHS20 - High-limit setpoint dial (20 - 90% RH)
  • Built-in humidity sensor
  • 24Vac or 24Vdc
  • One dry contact output

Details

  • Built-in temperature sensor
  • Plastic cover for wall mount installation
  • Two analog outputs (0 - 10 Vdc)
  • High accuracy and stability

Details

  • Built-in temperature and humidity sensor
  • Two analog outputs (0-10 Vdc)
  • Status LED

Details

  • Built-in temperature and humidity sensor
  • On/Off high limit humidistat with on-board setpoint adjustment
  • Two analog outputs (0-10 Vdc)
  • Status and high limit LEDs
  • One dry contact output
