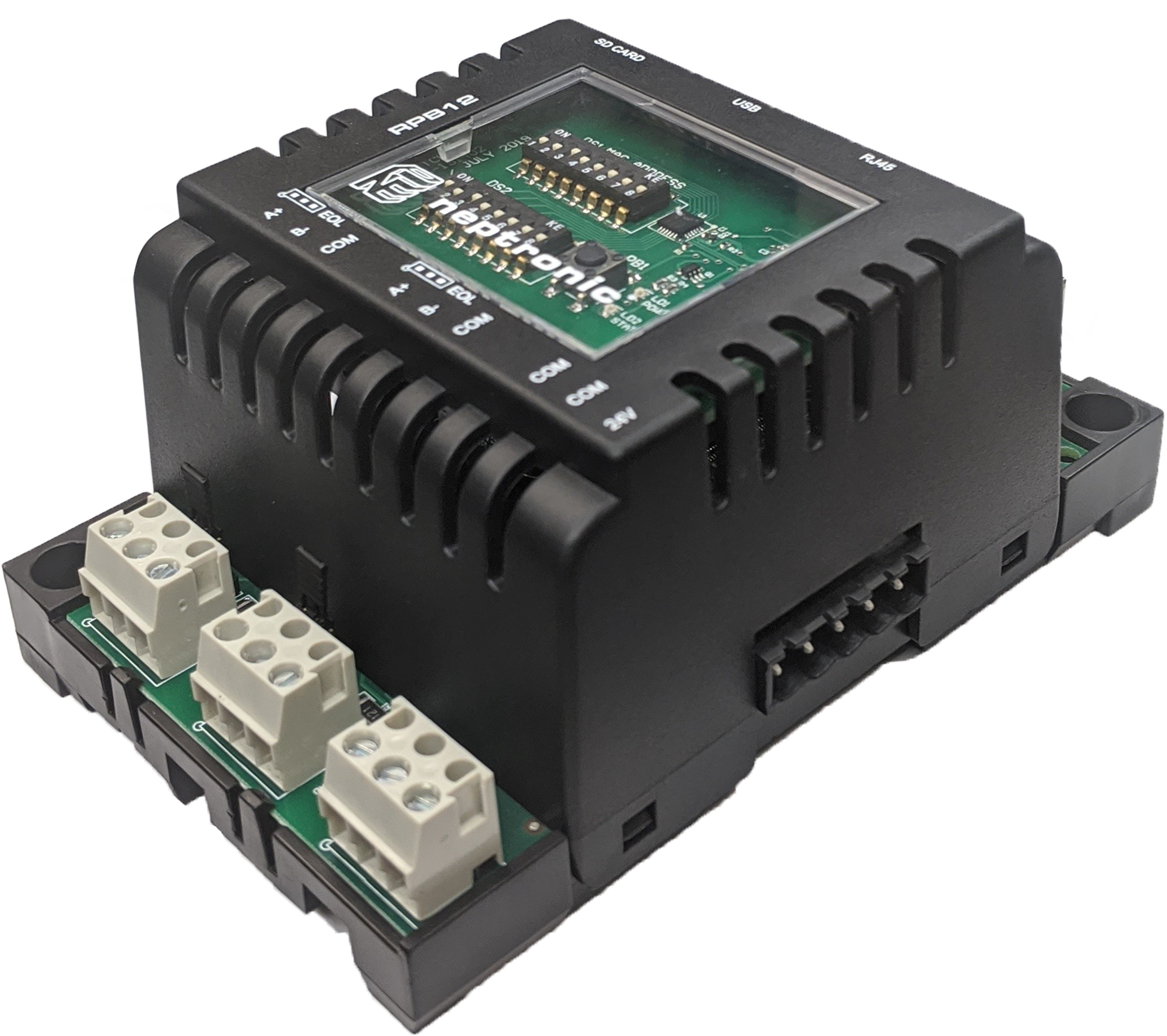

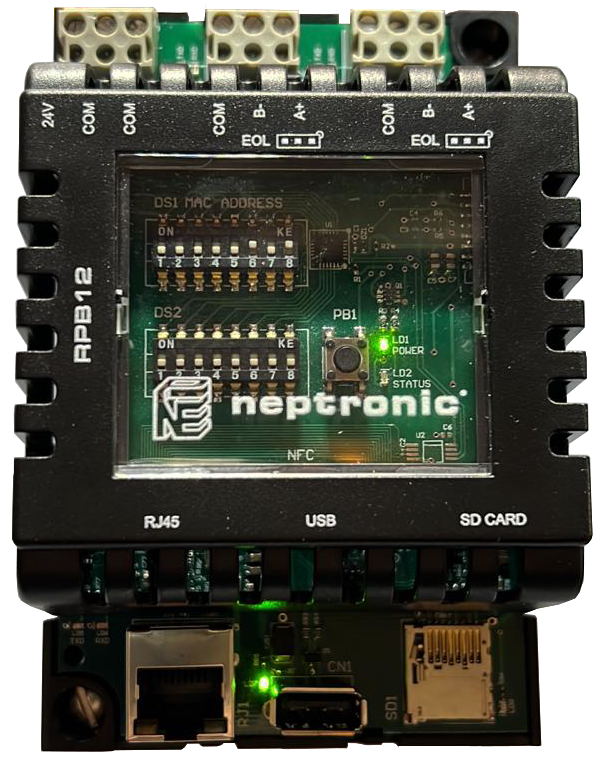

RPB - BACnet Router

  • Support up to 64 devices on 2 port models
  • BACnet SC support
  • IP V6 support
  • Additional Baud rates on BACnet MS/TP : 57600, 115200 bps
  • Support of the CMMB100E and 102E with the expansion slot
RPB Router

  • RPB

    BACnet Router
Tech Time
  • Instructions
  • RPB
RPB - BACnet Router

Details

Power
  • 24Vac or 24Vdc supply
Installation
  • Up to 32 or 64 BACnet devices without the use of additional line drivers
  • Simple web based configuration for BACnet IP and MS/TP communication
  • Connect using expansion slot to convert CMMB100E and CMMB102E as IP I/O cards
  • Support up to 3 mini I/O cards in any combination and make them IP ready while maintaining the MS TP ports for BACnet routing
Network Communication
  • BACnet MS/TP to BACnet IP or Ethernet
  • Select MAC address via DIP switch or via network
BACnet MS/TP
  • MS/TP @ 9600, 19200, 38400, 57600, 76800 or 115200 bps
  • Automatic baud rate detection
  • Automatic device instance configuration
BACnet IP / BACnet Ethernet
  • All IP / Ethernet configuration via on board web
  • Supports DHCP or fixed/static addressing

Models

Pricing
Model Description Devices Price
RPB11 ** 1-Port BACnet Up to 32 $ 557
RPB12 *** 2-Port BACnet Up to 64 $ 721
*** Coming soon
