SKV - EVAPORATIVE COOLING HUMIDIFIER

Overview
  • Custom modular design to fit any application
  • Specifically configured SKV Controller
  • Four efficiencies: 65%, 75%, 85% and 95%
  • Inorganic and inflammable material (UL900 Class 1)
  • Unique design resulting in low pressure drop
Hygienic & Safe
  • Inorganic and inflammable material (UL900 Class 1)
  • Use any water quality (tap, RO or Di)
  • Water treated with 5μm pre-filter and silver ions
  • UV sterilizer on water line (optional)
Easy Maintenance
  • Designed to simplify maintenance
  • 5 easy steps
SKV Controller
  • Pre-configured for each humidifier
  • Easy connection with only one 6-wire control cable
  • Controls up to 4 evaporative modules
  • BACnet communication (optional)
SKV - Evaporative SKV - Controller
  • Overview

    Operation & Features
  • Hygienic

    Media & Water Quality
  • Easy Maintenance

    5 Simple Steps
  • SKV Controller

    SKV Electronic
    Controller
SKV - Overview

Overview

In an evaporative humidifier, water is supplied to the top of the evaporative module and flows down the wet media (like a waterfall). Warm dry air passes through the wet media, evaporates water and thus raises the humidity level. The SKV also offers up to 12°C (21.5°F) of cooling as a result of the transfer of energy when the water evaporates.

Warm Cool Recirculation
pump
Tank Electrical Box Reversible and easy
to remove pump skid

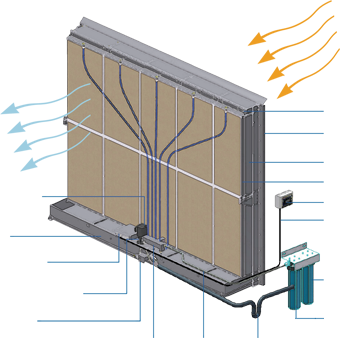

Drain pump Up to 5 stages Water Inlet Drain P Trap Water distribution drawers Minimal need of blanking plates (optional) Media panel (4 efficiencies) Droplet separator SKV controller 1 cable (6 wires) Silver ion anti-bacterial cartridge 5µm prefilter

Features

  • Custom designed with Humidisoft to meet your specific duct/application dimensions
  • Energy transfer while water evaporates results in free cooling up to 12°C (21.5°F)
  • Low energy (< 1 kW) consumption ensuring an environment friendly application
  • Available with 4 humidification efficiencies
  • Minimum blanking plates resulting in lower pressure drop
  • Silver Ion cartridge to prevent microbial growth
  • Staging valves up to 5 for flexible and accurate control
  • Includes SKV electronic controller
    • Microprocessor based, field configurable controller
    • On/Off or modulating control type
    • Master/slave configuration for up to 4 evaporative modules
    • Easy connection with only one 6-wire control cable
    • BACnet communication (optional)

BACnet Communication (optional)

  • MS/TP @ 9600, 19200, 38400, or 76800 bps
  • Set MAC address via controller menu
  • Manual or automatic device instance configuration
  • Automatic Baud Rate Detection

Operation

This configuration consists of an evaporative module that is installed in an air handling unit or duct.

  • Water enters the evaporation module from the main water supply and reaches the top of the unit.
  • The water distribution system disperses water over the evaporative module continuously like a waterfall.
  • Warm dry air passes through the wet media, evaporates water, and raises the humidity level.
  • Recirculation pump collects and recirculates the un-evaporated water to the matrix again and the evaporation process continues.

Application

The SKV Evaporative Cooling humidifier is ideal for applications requiring low energy and water consumption such as:

  • Data Centers
  • Paint Shops
  • Amphitheaters
  • Greenhouses
  • Commercial Buildings

Nomenclature

SKV R 95 C 1 D C
TypeR = Recirculation
D = Direct Feed
O = OEM
Media Efficiency65 = 65% efficiency
75 = 75% efficiency
85 = 85% efficiency
95 = 95% efficiency
ControllerC = Standard Controller
B = BACnet Controller
No. of Stages1 = 1 Stage
2 = 2 Stages
3 = 3 Stages
4 = 4 Stages
5 = 5 Stages
DropletD = Droplet separator included
_ = None
VoltageA = 120Vac

Media Panels

The SKV Evaporative corrugated media is made of fiberglass material bounded with a special inorganic compound, which allows exceptional moisture absorption, ensuring continuous humidification and evaporative cooling even at a high air velocity. The inorganic compound makes it hygienic, fire resistant and incombustible.

  • Inorganic and inflammable material (UL900 Class 1)
  • Hygienic and safe
  • Low pressure drop
  • Trouble free maintenance
  • No water treatment required
  • No risk of over saturation
  • Four efficiencies: 65%, 75%, 85% and 95%
  • Media frame made of stainless steel
  • Media easily removable from stainless steel frame
4 media
efficiencies
Droplet
separator
Warm dry air Cool humid air
(up to 12°C)
Low pressure
drop
65% 75% 85% 95%

Water Quality

Hygienic operation with any type of supplied water quality (tap, RO or Di).

  • Self-cleaning, odor free media
  • Water treated with 5μm pre-filter
  • Anti-bacterial silver ion dosing cartridges prevent microbial growth
  • UV sterilizer on water line (optional)

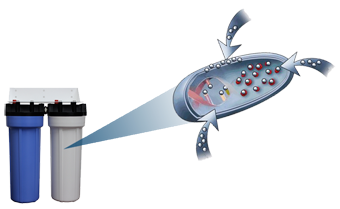

How Silver Ions Work

They inhibit the reproduction of microbe by:

  • Silver ions break through the cell wall
  • Silver ions disrupting respiration of the microbe
  • Silver ions attaching to DNA of the microbe to stop cell replication
1 2 3 5µm
Pre-filter
Silver ions

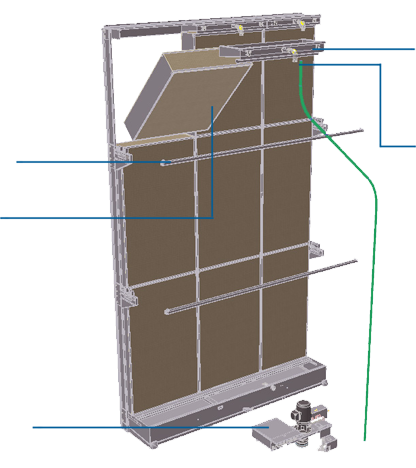

5 Easy Steps

The SKV has been designed for easy access to components of the evaporative module for maintenance.

  • Pull out the easy access water distribution drawers
  • Remove the pushing quick connect hose
  • Remove the easy access pump skid (only 1 screw)
  • Remove holding channel
  • Remove SKV media panel
  • Pull out the easy access water distribution drawers
  • Remove the pushing quick connect hose
  • Remove the easy access pump skid (only 1 screw)
  • Remove holding channel
  • Remove SKV media panel

Features

  • Microprocessor based, field configurable controller
  • Master/slave configuration for up to 4 evaporative modules
  • On/Off or modulating control type
  • Real-time clock with flexible scheduler
  • Simple viewing and exporting of trending log and alarm log
  • In-field firmware upgradeable via SD card
  • Easy connection with only one 6-wire control cable
  • Stainless steel IP56 rated (equivalent to NEMA type 4) enclosure for outdoor installations
  • User-friendly menu driven 128 x 64 LCD

BACnet Communication (optional)

  • MS/TP @ 9600, 19200, 38400, or 76800 bps
  • Set MAC address via controller menu
  • Manual or automatic device instance configuration
  • Automatic Baud Rate Detection
