SPC - Static Pressure Controller
  • Control bypass damper actuators, a VFD, or Vortex for VAV systems
  • Simple installation
  • Adjust setpoint, deadband and more
  • Fully calibrated
SPD - Pressure Differential Transducer
  • Small footprint
  • Simple and easy to install
  • Selectable output signal
  • High flow impedance
SPC SPD
  • SPC

    Static Pressure
    Controller

    Pulsed Vdc Control

  • SPD

    Pressure Differential
    Transducer

    Pressure Differential Transducer

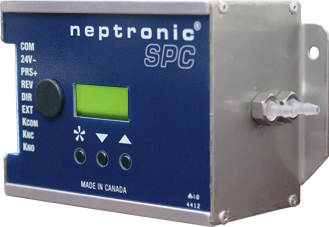

SPC - Static Pressure Controller
Overview
SPC

Details

Features
  • LCD Display
  • Simple installation and configuration
  • Displays actual pressure reading
  • Adjustable setpoint and dead band
  • Adjustable response speed
  • Selectable output signal
  • Direct or reverse action outputs
  • Fully calibrated
  • Real-time pressure output for remote monitoring
Applications
  • Control bypass damper actuators, a VFD, or Vortex for VAV systems
  • Laboratory pressurization control
  • Stairwell pressurization control
  • Energy saving

Models

Pricing
Model List
Price
Pressure
Range
SPC 0.1 $ 1,184 0 to 0.1" w.c.[25 Pa]
SPC 1.0 $ 619 0 to 1.0" w.c.[250 Pa]
SPC 2.0 $ 619 0 to 2.0" w.c.[500 Pa]
SPC 5.0 $ 619 0 to 5.0" w.c.[1245 Pa]
Overview
SPD
SPD70
(with metal enclosure)

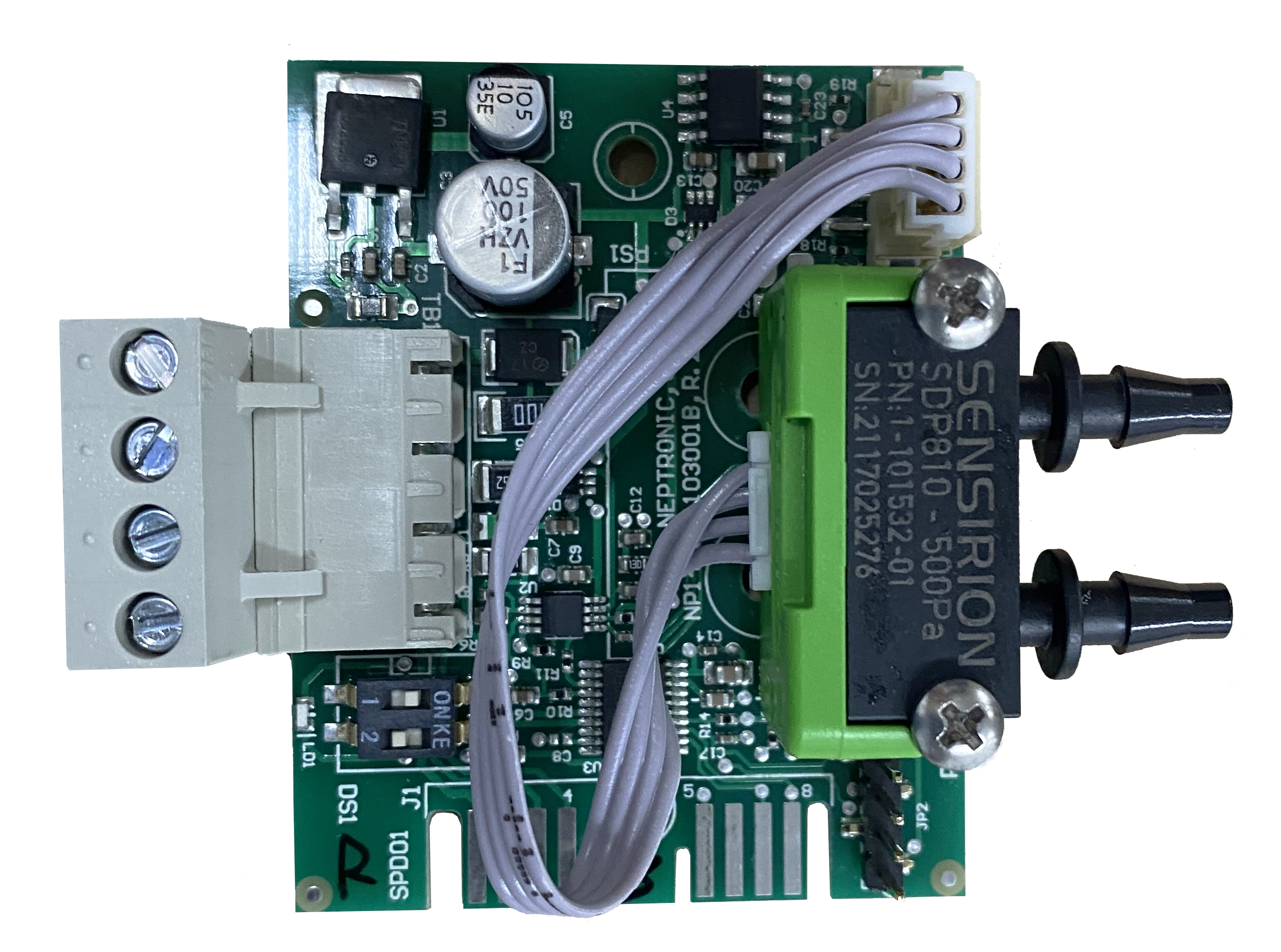

SPD00
SPD00
(PCB only)

Details

Features
  • Small footprint
  • Simple and easy to install
  • Selectable output signal
    (0-10 or 2-10 Vdc & 4-20 or 0-20mA)
  • High flow impedence in the range of tens to hundreds of kPa
Applications
  • Measures the pressure differential and converts the value to an analog signal (mA or Vdc). Primarily used in conjunction with a controller for bypass damper actuators in VAV systems.

Models

Pricing
Model List
Price
Range Enclosure
SPD00-010 $ 143 0-1" w.c.[250 Pa] PCB only
SPD70-010 $ 153 0-1" w.c.[250 Pa] Metal enclosure
SPD00-020 $ 143 0-2" w.c.[500 Pa] PCB only
SPD70-020 $ 153 0-2" w.c.[500 Pa] Metal enclosure
SPD00-050 $ 204 0-5" w.c.[1245 Pa] PCB only
SPD70-050 $ 215 0-5" w.c.[1245 Pa] Metal enclosure
