STS & SHS - Wireless Room Sensor

  • Self-powered via ambient light energy (or 24Vac input)
  • Setpoint dial with 2 buttons for configurable peripheral applications
  • Large light energy harvesting cell surface
  • Energy harvesting provides operation for up to 14 days without light
  • Self-powered via ambient light energy (or 24Vac input)
  • EnOcean wireless communication (new generation)
  • Large light energy harvesting cell surface
  • Energy harvesting provides operation for up to 14 days without light
  • Optional backup battery for low light installations
  • Functions as a energy collector for Wireless Room Sensor
  • Harvested energy is transfer to the Wireless Room Sensor
  • Recommended for Wireless Room Sensors installed in
       areas with low light or no light
STS & SHS BTL STR & SHR CSV
  • STS & SHS

    Wireless Room Sensor
    with User Controls

    Wireless Room Sensor with User Controls

  • STR & SHR

    Wireless Room
    Sensors

    Wireless Room Sensor

  • CSV

    Energy
    Collector

    Energy Collector

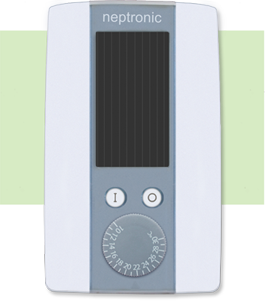

STS & SHS - Wireless Room Sensor with User Controls
STSSHS

Sensor transmits:

  • - Room Temperature
  • - Room Humidity (SHS29E only)
  • - Setpoint
  • - Manual Override
  • - Battery level

Details

Features
  • Self-powered via ambient light energy (or 24Vac input)
  • Large light energy harvesting cell surface
  • Energy harvesting provides operation for up to 14 days without light
  • Energy harvesting functions down to 200 lux
  • Optional backup battery for low light installations
  • EnOcean wireless communication (new generation)
  • No wires and no batteries save time, labour and maintenance
  • Configurable wake-up intervals and redundant transmissions
  • Built-in temperature sensor and optional humidity sensor
  • Remote temperature sensor input
  • Setpoint dial with 2 buttons for configurable peripheral applications
Applications
  • Neptronic EFC EnOcean wireless fan coil controllers
  • EnOcean compatible building automation systems
  • Installations requiring virtually no maintenance and easy installation
  • Installations where wiring can be difficult (concrete or other)
Power Supply
  • Solar cells and super capacitors
  • Optional 2032 backup battery
  • Optional 24Vac input
  • Optional Energy Collector (CSV-29)
EnOcean Features
  • EnOcean integrated module = 868MHz (STM300) or 902.87MHz (STM300U)
  • Antenna = Integrated (Whip Antenna)
  • RF range = 300m (985ft) free of obstacles - 30m (100ft) interior
  • Removable, non-strip, raising clamp terminals

Models

Pricing
Model List
Price
Temp.
Sensor
Humidity
Sensor
User
Controls
Frequency
STS29E8 $ 420 - 868 MHz
STS29E9 $ 420 - 902 MHz
SHS29E8 $ 483 868 MHz
SHS29E9 $ 483 902 MHz
STRSHR

Sensor transmits:

  • - Room Temperature
  • - Room Humidity (SHR29E only)
  • - Battery level

Details

Features
  • Self-powered via ambient light energy (or 24Vac input)
  • Large light energy harvesting cell surface
  • Energy harvesting provides operation for up to 14 days without light
  • Energy harvesting functions down to 200 lux
  • Optional backup battery for low light installations
  • EnOcean wireless communication (new generation)
  • No wires and no batteries save time, labour and maintenance
  • Configurable wake-up intervals and redundant transmissions
  • Built-in temperature sensor and optional humidity sensor
  • Remote temperature sensor input
Applications
  • Neptronic EFC EnOcean wireless fan coil controllers
  • EnOcean compatible building automation systems
  • Installations requiring virtually no maintenance and easy installation
  • Installations where wiring can be difficult (concrete or other)
Power Supply
  • Solar cells and super capacitors
  • Optional 2032 backup battery
  • Optional 24Vac input
  • Optional Energy Collector (CSV-29)
EnOcean Features
  • EnOcean integrated module = 868MHz (STM300) or 902.87MHz (STM300U)
  • Antenna = Integrated (Whip Antenna)
  • RF range = 300m (985ft) free of obstacles - 30m (100ft) interior
  • Removable, non-strip, raising clamp terminals

Models

Pricing
Model List
Price
Temp.
Sensor
Humidity
Sensor
User
Controls
Frequency
STR29E8 $ 399 - - 868 MHz
STR29E9 $ 399 - - 902 MHz
SHR29E8 $ 462 - 868 MHz
SHR29E9 $ 462 - 902 MHz
CSV

Details

Features
  • Large light energy harvesting cell surface
  • Harvested energy is transfered to a Wireless Room Sensor located in an area with little or no light
  • Energy harvesting functions down to 200 lux

Models

Pricing
Model List
Price
Compatibility
CSV29 $ 159 All Wireless Room Sensors
Applications

When a Wireless Room Sensor is installed in areas with little or no natural light, use the Energy Collector model to harvest energy from an area with light and transfer it to the Wireless Room Sensor.
