SARB - Networkable IAQ Room Sensors
  • BACnet and Modbus
  • Up to 2 inputs and 4 outputs
  • Temp, %RH, CO2 and VOC
SAR - IAQ Room Sensors
  • CO2 Sensor Feedback
  • CO2 Warning and alaran level outputs
  • Humidity or VOC sensor feedback output
SARB SAR
  • SARB

    Netoworkable
    IAQ Room Sensors

    Networkable IAQ Room Sensors

  • SAR

    IAQ
    Room Sensors

    IAQ Room Sensors

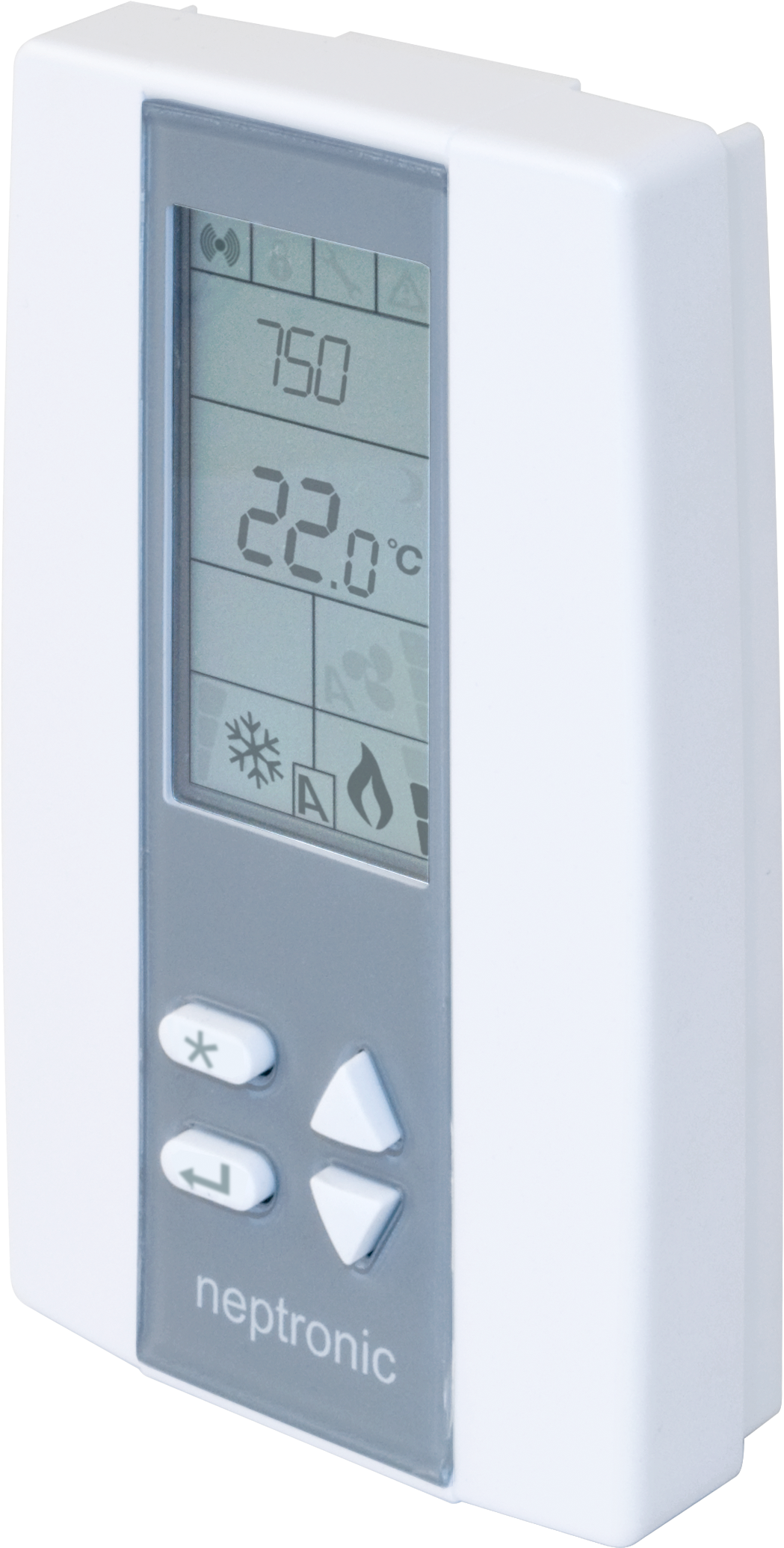

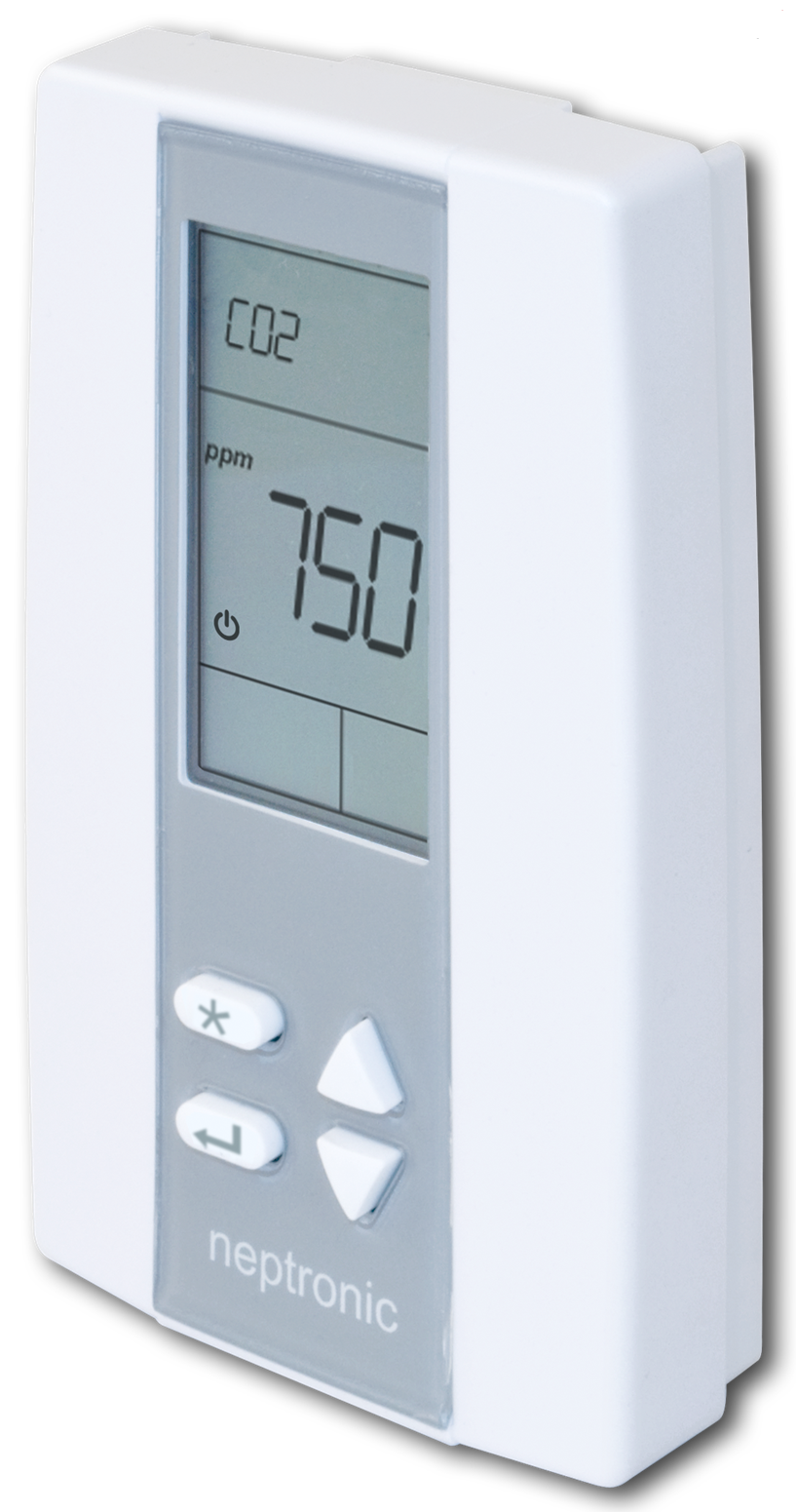

SARB - Networkable IAQ Room Sensors
Overview
SARB
SARB

Details

Features
  • One analog input (AI1) readable via network
  • One binary input (BI1) readable via network
  • Two analog outputs (2 AO) commandable via network
  • Two binary outputs (2 BO) commandable via network
  • Enthalpy and dew point calculations (available via network)
  • Display or hide all the required access for user interaction
  • Backlit LCD with simple icon and text-driven menus
  • Selectable Fahrenheit or Celsius scale
  • BACnet® MS/TP or Modbus (selectable via menu)
  • Select MAC address via menu or via network
  • Automatic baud rate detection
  • Network service port via on-board mini USB connector

Models

Pricing
Models Temp RH CO2 VOC Networkable List Price*
SARB24TG - - $520
SARB24TV - - $460
SARB24TGH - $620
SARB24TGVH $780
Overview

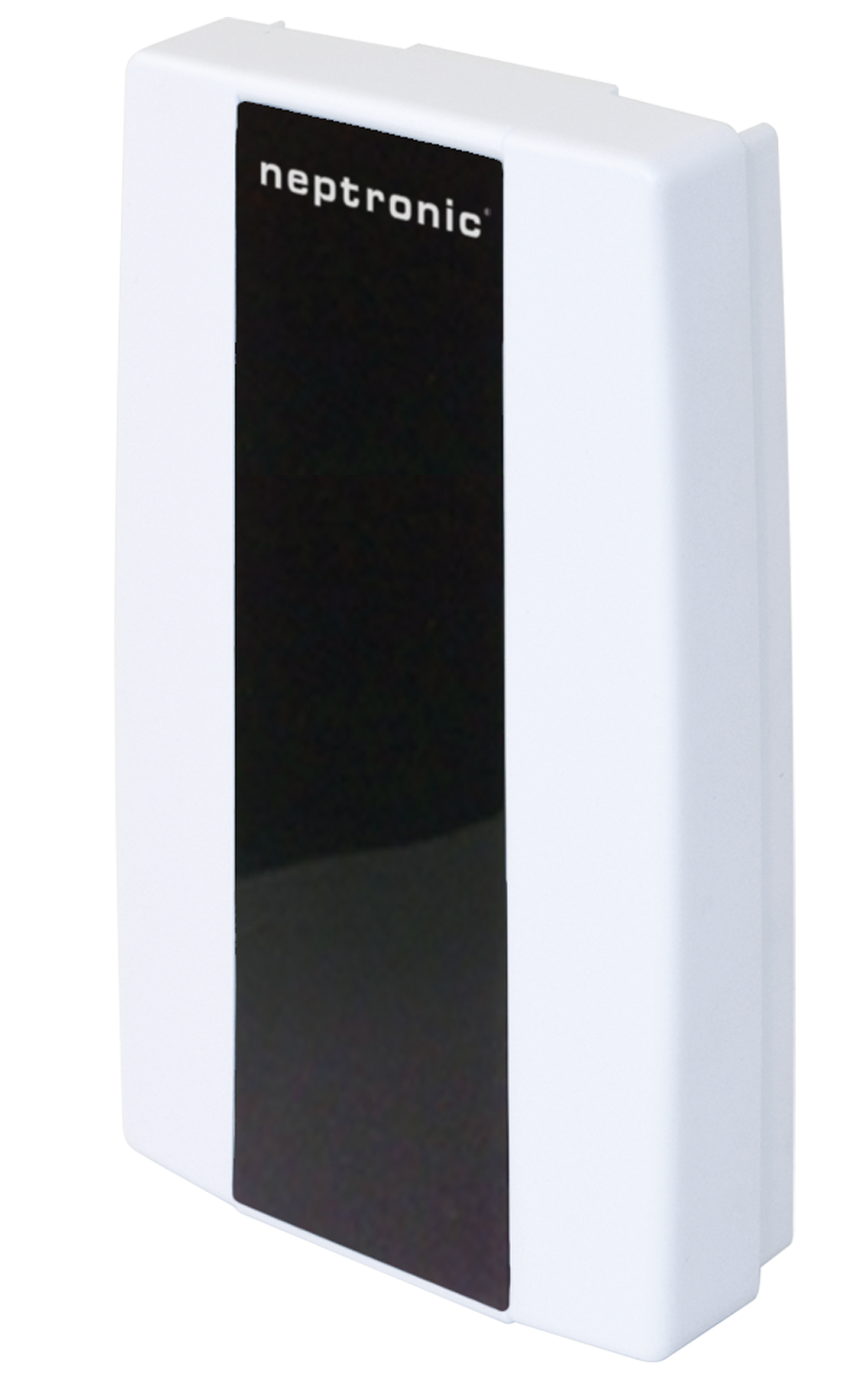

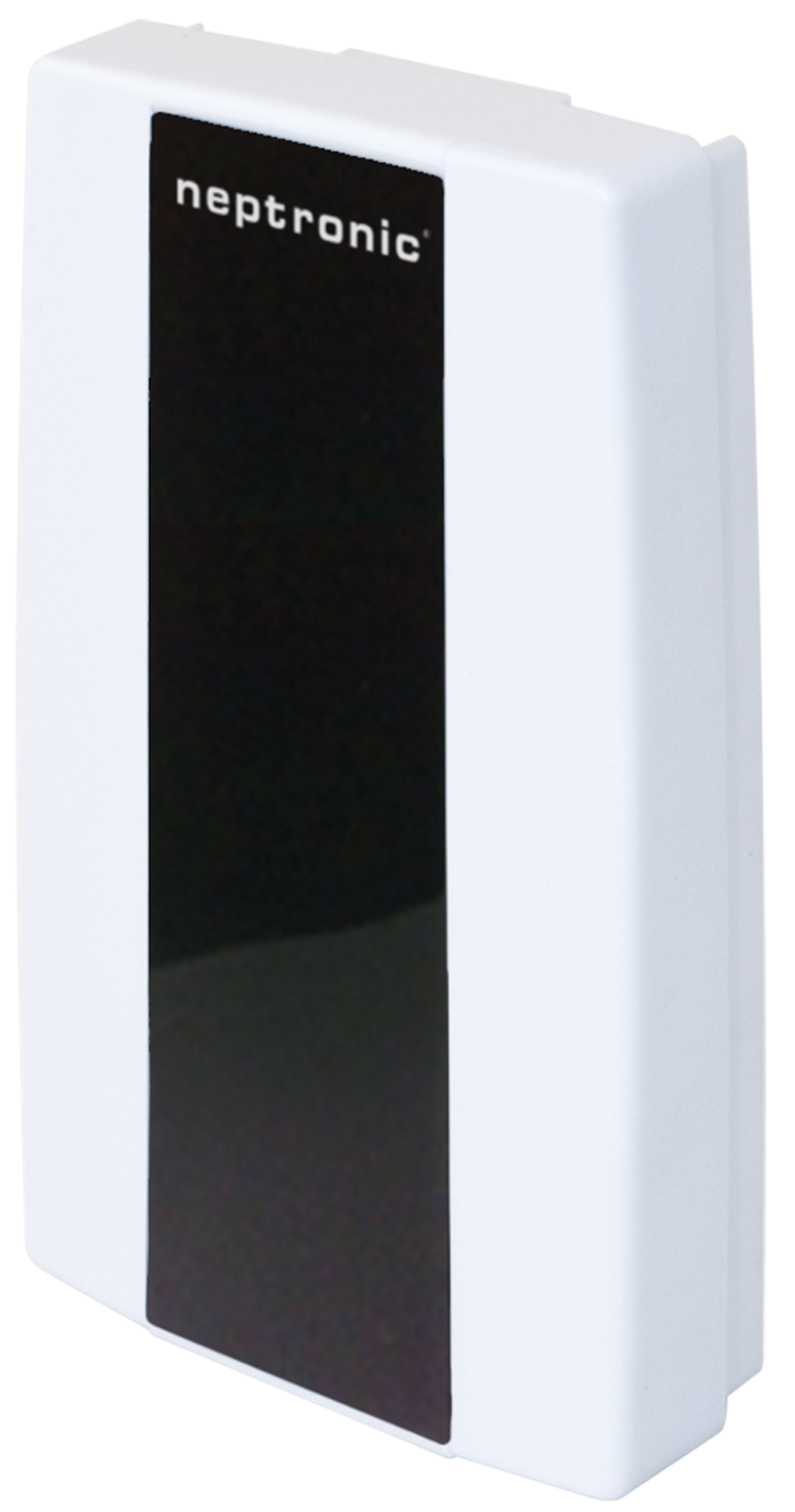

SAR Controller
SAR Controller

Details

Features

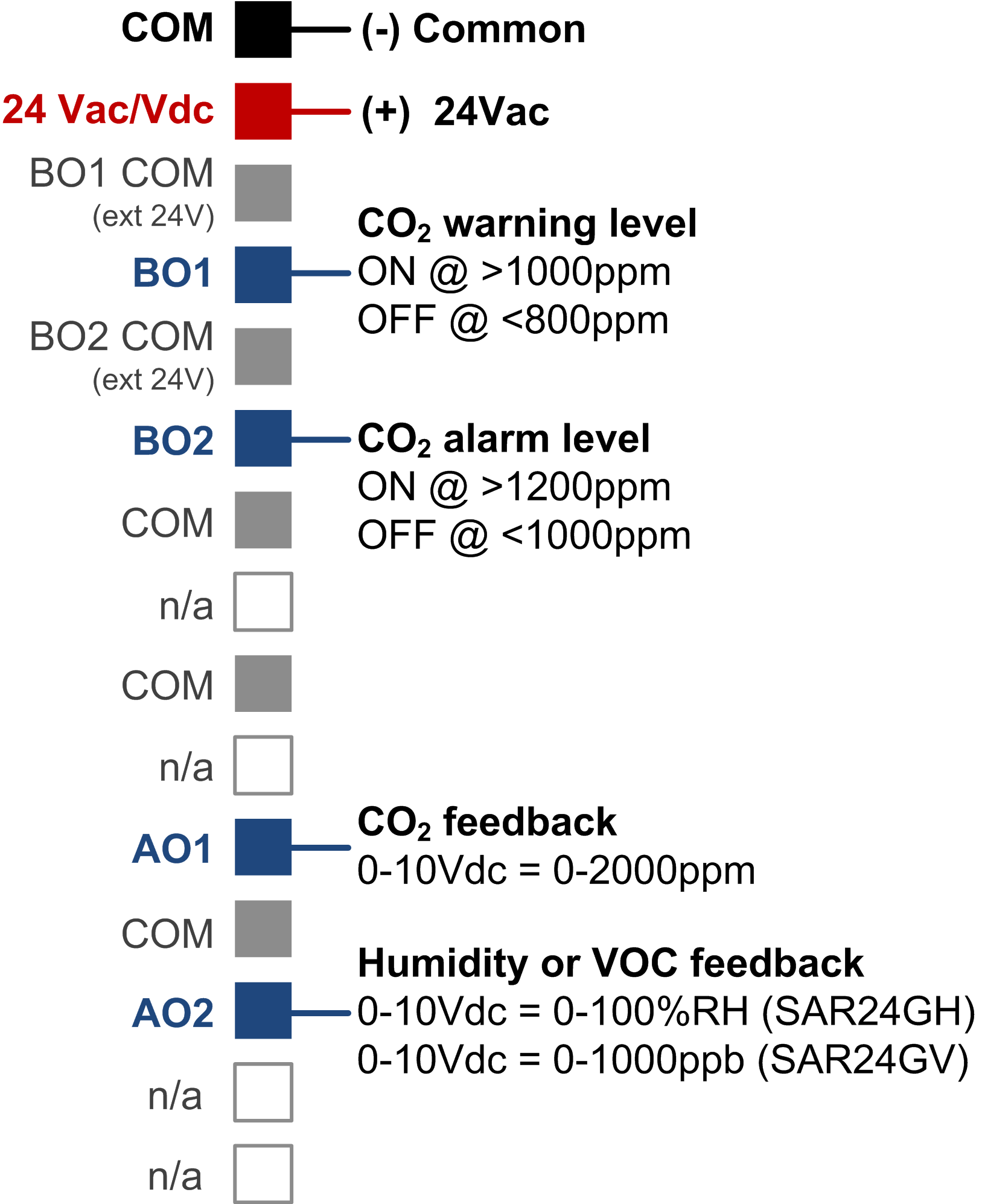

  • CO2 sensor feedback output (AO1)
  • CO2 warning and alarm level outputs (BO1 and BO2)
  • Humidity or VOC sensor feedback output (AO2)
  • Input voltage 24Vac or 24Vdc

Models

Pricing
Models Temp RH CO2 VOC Networkable List Price*
SAR24GH - - - $480
SAR24GV - - - $640
